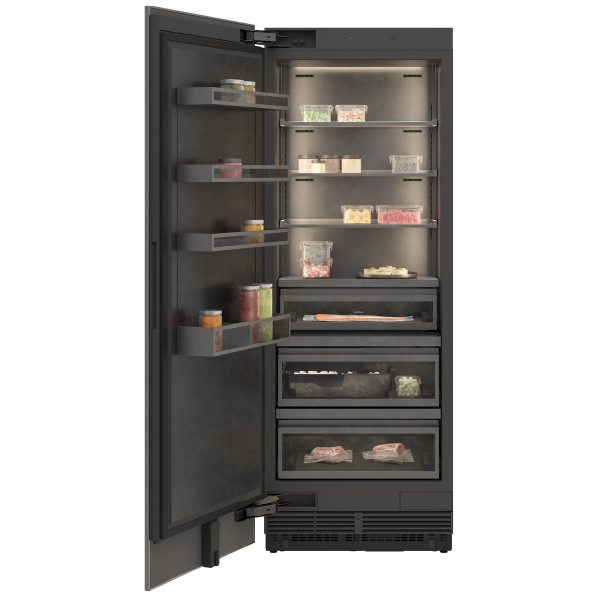

The Gaggenau RVF477190 is a Vario cooling Expressive series freezer with a total volume of 516 litres and a dark brushed stainless steel interior refined with solid anthracite aluminium elements. It offers warm-white, glare-free LED lighting and flexible storage with adjustable shelves, door racks and fully extendable drawers. With no-frost technology, fast freezing at −30 °C, integrated ice maker and Home Connect digital services, it is designed for high-end, built-in kitchen installations.

Key Features

Dark brushed stainless steel interior refined with solid anthracite aluminium elements for a distinctive appearance.
Warm-white, glare-free LED lighting (3000 K) for optimal food presentation in all compartments.
Opening assist for door with push-to-open for handleless fronts or pull-to-open for use with a handle.
Coordinated drawer heights with RVC and RVF models so shelves and door racks align in side-by-side installation.
Flexible shelf and door rack positioning via a hidden rail system and flat dark brushed stainless steel inner door.
Total volume 516 litres providing generous freezer storage capacity.
Dynamic cold air distribution with automatic defrosting and defrost water evaporation.
No-frost technology with fast freezing at −30 °C and a 4-star freezer compartment.
Adjustable freezer temperature from −16 °C to −24 °C for precise control.
Freezing capacity of 25 kg / 24 h and storage time after malfunction of 19 h.
Freezer burn and oxidation protection for stored food.
Three aluminium-framed safety glass shelves, individually height-adjustable.
Four height-adjustable door racks with flexible positioning through a hidden rail system.
Three fully extendable drawers with a cushioned closing system for smooth operation.
Integrated ice maker hidden in one drawer with fixed water connection and on/off function.
Ice production of approximately 2.4 kg / 24 h and removable ice storage container with approximately 3 kg capacity.
Included ice storage container and scoop for convenient serving and handling of ice.
Particle filter for water inlet integrated in the ventilation grille area with saturation indicator in the touch display.
Hidden touch display with user guidance through light and display response to drawer interaction.
Automatic brightness adjustment based on ambient illumination.
Cushioned door closing system and open-door/malfunction alarm for added reassurance.
Rest mode certified by Star-K, during which the appliance can only be opened using a handle.
Home Connect digital services offering selected remote control, monitoring and software updates.
Energy efficiency class D with energy consumption of 277 kWh/year.
Low noise level of 38 dB (A) re 1 pW.
Flat hinge and reversible door with left door hinge and opening angle of 115° (fixable at 90°).
Max. door panel weight 39 kg for integrated cabinetry design.
Included accessories: 1 x ice cube scoop and 1 x large ice storage container.
Optional accessories available, including water filter, stainless steel doors, handles, trims and installation kits.

Technical Specifications

Product type	Freezer Vario cooling Expressive series
Model	RVF477190
Installation type	Vario cooling, suitable for side-by-side installation with RVC and RVF models
Dimensions (H x W)	213.4 x 76.2 cm
Total volume	516 litres
Freezer temperature range	−16 °C to −24 °C
Fast freezing temperature	−30 °C (no-frost technology with fast freezing)
Freezer compartment rating	4-star freezer compartment
Freezing capacity	25 kg / 24 h
Storage time after malfunction	19 h
Lighting	Warm-white, glare-free LED lighting (3000 K) within freezer compartment
Shelves	3 aluminium-framed safety glass shelves, individually adjustable in height
Door racks	4 height-adjustable door racks with flexible positioning
Drawers	3 fully extendable drawers with cushioned closing system
Ice maker location	Hidden in one drawer
Ice production	Approx. 2.4 kg / 24 h
Ice storage capacity	Approx. 3 kg (removable ice storage container)
Energy efficiency class	D (range A to G)
Energy consumption	277 kWh/year
Noise level	38 dB (A) re 1 pW
Door hinge	Left, reversible
Door opening angle	115°, fixable at 90°
Max. door panel weight	39 kg
Connected load	0.300 kW
Connecting cable	3.0 m, pluggable
Water inlet connection	Supply hose 1.8 m with 3/4' connection
Water pressure range	2 bar to 8 bar (0.2 MPa to 0.8 MPa)
Rest mode certification	Star-K

Additional Details and Usage

Handling and controls

The appliance features opening assist for the door and a cushioned door closing system. User guidance is provided through light and display response to drawer interaction, with automatic brightness adjustment based on ambient illumination. A hidden touch display controls functions and shows the saturation indicator for the integrated particle filter.

Cooling and freezing functions

Dynamic cold air distribution, no-frost technology and automatic defrosting with defrost water evaporation help maintain consistent performance. The freezer temperature is adjustable from −16 °C to −24 °C, with fast freezing at −30 °C. Freezer burn protection and oxidation protection support the storage of frozen food.

Ice maker operation

The ice maker is hidden in one drawer for optimised usable space and operates with a fixed water connection. It can be switched off when not required. Ice cube production is approximately 2.4 kg per 24 hours and ice is stored in a removable container of approximately 3 kg capacity, accessed with the integrated ice cube scoop.

Home Connect digital services

Selected digital services via Gaggenau Home Connect enable remote control and monitoring of the appliance, as well as software updates. The specific scope of services is Not stated in source.

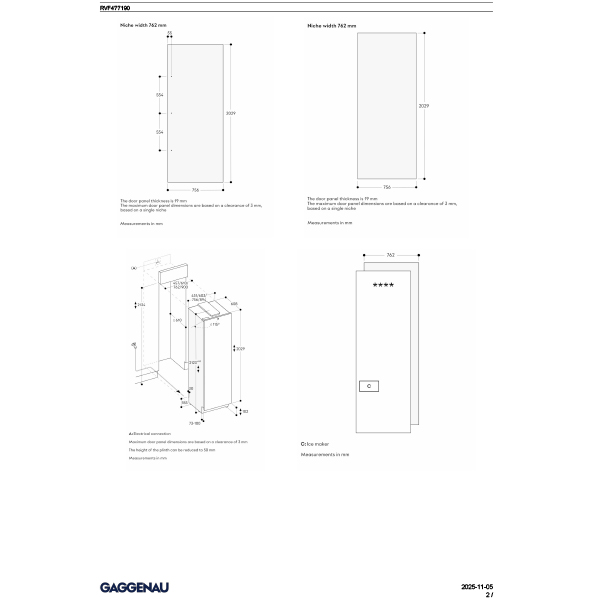

Planning and installation notes

Flat hinge design with left door hinge, which is reversible.

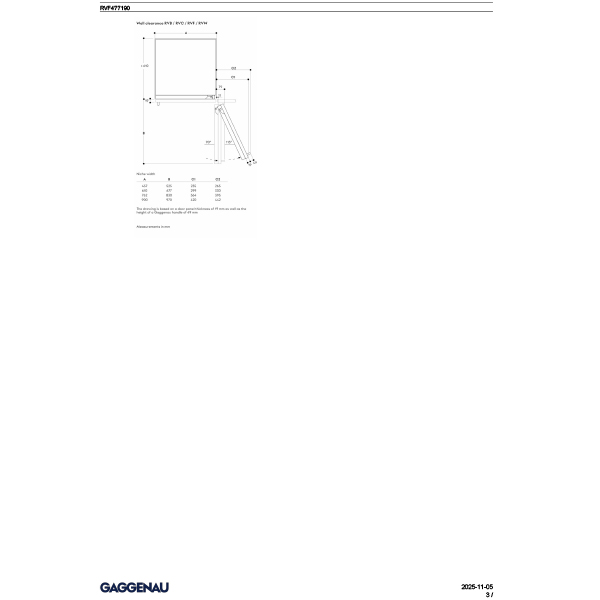

Door opening angle of 115°, which can be fixed at 90°.
Maximum door panel weight is 39 kg.
A shut-off valve for the water connection must be planned next to the appliance and always be accessible.
If water pressure exceeds 0.8 MPa (8 bar), a pressure relief valve must be connected between the water tap and hose set.
Water inlet uses a supply hose of 1.8 m with 3/4' connection; water pressure must be between 2 bar and 8 bar.

Included and optional accessories

Included accessories:

1 x ice cube scoop
1 x large ice storage container

Optional accessories:

RA450012: Water filter Vario 400 installation accessories
RA425110: Vario stainless steel handle 1131 mm
RA460020: Frontpanel connection long
RVA421722: Stainless steel door with handle 76.2 cm (30')
RVA423141: Side trims, 3 mm
RVA428722: Stainless steel door without handle 76.2 cm (30')
RVA460000: Installation kit side-by-side
RVA460020: Backward compatibility kit side-by-side
RVA466700: Door direction change kit 76.2 cm (30')

Frequently Asked Questions

What is the total capacity of the Gaggenau RVF477190 freezer?

The total volume of the RVF477190 freezer is 516 litres.

Does the freezer need manual defrosting?

No. The appliance uses no-frost technology and features automatic defrosting with defrost water evaporation.

What is the temperature range for the freezer compartment?

The freezer temperature is adjustable from −16 °C to −24 °C, with fast freezing available at −30 °C.

Is there an integrated ice maker and how much ice does it produce?

Yes. The freezer has an integrated ice maker hidden in one drawer, with ice cube production of approximately 2.4 kg per 24 hours and a removable ice storage container of approximately 3 kg capacity.

Can the RVF477190 be installed side-by-side with other appliances?

Yes. The drawers in the RVC and RVF models are positioned at the same height so that glass shelves and door racks can be aligned level in side-by-side installation. An installation kit side-by-side (RVA460000) is available as an optional accessory.

What is the energy efficiency and noise level of this freezer?

The RVF477190 has an energy efficiency class D, with energy consumption of 277 kWh per year and a noise level of 38 dB (A) re 1 pW.
