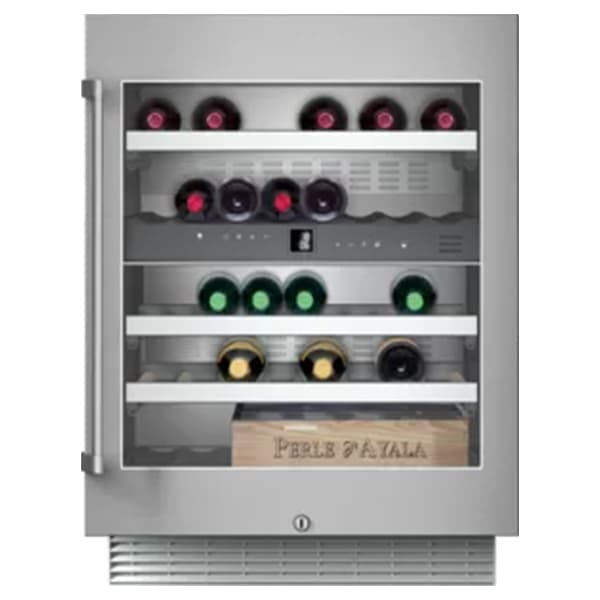

The Gaggenau RW404264 is a built–in multi–temperature wine cooler designed to store up to 34 standard 0.75 l bottles in two independently controllable climate zones. It offers consistent temperatures from +5 °C to +20 °C with humidity control, dynamic cold air distribution and UV protection. Extendable beech and aluminium bottle trays, LED lighting and a cushioned, lockable door provide convenient handling and secure, gentle storage for a range of wine collections.

Key Features

Capacity 34 bottles based on 0.75 l standard bottles with storage of magnum bottles possible.
Two independently controllable climate zones for flexible wine storage.
Consistent temperatures from +5 °C to +20 °C with exact electronic control and digital display.
Humidity control to support suitable storage conditions.
Extendable bottle trays in beech and aluminium with 5 trays in total, 3 of which are extendable.
Interior LED lighting (3000 K) with presentation light option in each climate zone and dimmable function.
Cushioned door closing system integrated in the door hinge for soft and controlled closure.
Lockable door to help secure the contents.
Dynamic cold air distribution and automatic defrosting with defrost water evaporation.
Activated charcoal air filter serving both climate zones.
UV protection to help shield wine from light.
Open–door and malfunction alarm for added convenience.
Dust filter, dishwasher–safe for easier maintenance.
Built–in design with flat, reversible door hinge and side–by–side installation possible with special accessory.
Low airborne acoustical noise emissions of 34 dB (A) re 1 pW, noise level class B.
Total volume 94 litres within a compact built–in appliance.

Technical Specifications

Brand	Gaggenau
Product name / Commercial code	RW404264
Product category	Multi–temperature winecooler
Colour variants	RW404264
Optional accessories	RA097600 (side–by–side installation possible with special accessory)
Capacity	34 bottles (based on 0.75 l standard bottles)
Total volume	94 litres
Number of climate zones	2 independently controllable climate zones
Temperature range	+5 °C to +20 °C
Humidity control	Yes (humidity control)
Bottle trays	5 bottle trays, 3 of which are extendable; beech and aluminium
Storage of magnum bottles	Storage of magnum bottles possible
Lighting	Interior LED lighting (3000 K); presentation light option in each climate zone, dimmable
Door closing system	Cushioned door closing system integrated in door hinge; allowing soft and controlled door closure
Door lock	Lockable door
Air distribution	Dynamic cold air distribution
Defrosting	Automatic defrosting with defrost water evaporation
Air filter	1 activated charcoal air filter for both climate zones
UV protection	UV–protection
Alarms	Open–door and malfunction alarm
Dust filter	Dust filter, dishwasher–safe
Energy efficiency class	G
Annual energy consumption	AU (value not further detailed; Not stated in source)
Airborne acoustical noise emissions	34 dB (A) re 1 pW; noise level class B
Installation type	Built–in
Door panel options	Not possible
Height of the appliance	818 mm
Width of the appliance	597 mm
Depth of the product	570 mm
Required niche size (H × W × D)	820 × 600 × 580 mm
Net weight	52.3 kg
Flat hinge	Flat hinge; door hinge right, reversible
Door opening angle	115°, fixable at 95°
Height–adjustable feet	Height–adjustable feet
Side clearance requirement	For integration next to a side wall a clearance of 150 mm hinge side is necessary.
Mains socket position	The mains socket needs to be planned outside the built–in niche.
Permitted transport / operation height	No transport/operation above 1.500 m sea level.
Total connected load	0.130 kW / Connection Rating 130
Fuse protection	10
Voltage	220–240 V
Frequency	50–60 Hz
Number of compressors	1
Number of independent cooling systems	1
Interior ventilator	Yes
Interior light switch	No
Length of electrical supply cord	200 cm (connecting cable 2.0 m with plug)
Plug type	Gardy plug w/ earthing
Reversible door hinge	Yes (door hinge right, reversible)
EAN code	4242006311407

Handling, Installation and Usage Details

Handling

Electronic temperature control with digital display.
Touch keys for operation.
Presentation light option in each climate zone, dimmable.
Interior LED lighting (3000 K) with automatic dimming with opening and closing of door.

Planning and Installation Notes

Flat hinge with door hinge right, reversible.
Height–adjustable feet.
Door opening angle 115°, fixable at 95°.
For integration next to a side wall a clearance of 150 mm hinge side is necessary.
The mains socket needs to be planned outside the built–in niche.
No transport/operation above 1.500 m sea level.
Side–by–side installation possible with special accessory.

Consumption and Connection Features

Total connected load 0.130 kW.
Connection Rating 130; fuse protection 10.
Voltage 220–240 V; frequency 50–60 Hz.
Connecting cable 2.0 m with plug; length electrical supply cord 200 cm.
Gardy plug with earthing.
Number of compressors: 1; number of independent cooling systems: 1.
Interior ventilator: Yes.

Frequently Asked Questions

How many bottles can the Gaggenau RW404264 hold?

The appliance has a capacity of 34 bottles based on 0.75 l standard bottles, and storage of magnum bottles is possible.

What temperature range does this wine cooler offer?

It provides consistent temperatures with exact control from +5 °C to +20 °C across two independently controllable climate zones.

Is the door reversible and does it have soft closing?

Yes. The appliance has a flat, reversible door hinge with the hinge on the right as standard, and a cushioned door closing system integrated in the door hinge for soft and controlled closure.

Does the wine cooler protect wine from odours and light?

It includes UV–protection and one activated charcoal air filter serving both climate zones to help protect the contents.

What are the installation space requirements?

The required niche size is 820 × 600 × 580 mm (H × W × D). For integration next to a side wall a clearance of 150 mm on the hinge side is necessary, and the mains socket must be outside the built–in niche.

How loud is the RW404264 in operation?

The airborne acoustical noise emissions are 34 dB (A) re 1 pW, and it is classified in noise level class B.
