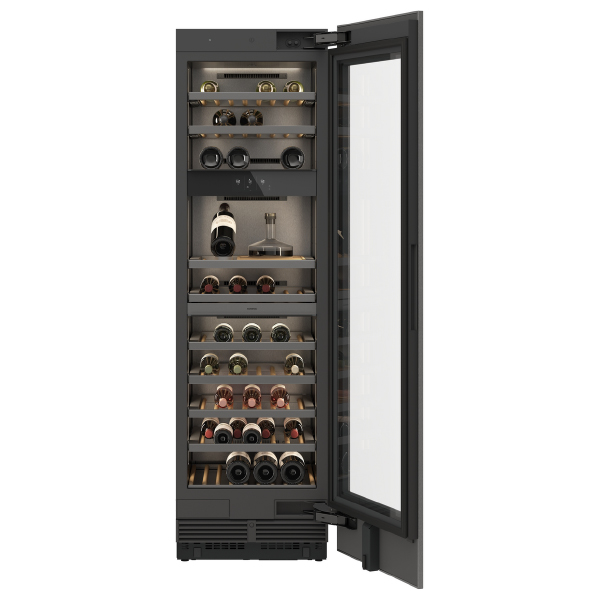

The RVW467170 is a wine climate cabinet from the Vario cooling Expressive series, offering three independently controllable climate zones and automatic tempering programmes for precise drinking temperatures. With a capacity of 110 bottles and a total volume of 401 litres, it combines low-vibration operation, humidity control and dynamic cold air distribution for long-term storage. Dark brushed stainless steel interior, oak wood bottle trays and warm white LED lighting provide optimal presentation and flexible configuration.

Key Features

Automatic tempering programmes (sensor-based) for achieving precise drinking temperature.
3 independently controllable climate zones, including 2 with automatic tempering programmes.
Consistent temperature control from +5 °C to +20 °C (manual mode) and from +3 °C to +20 °C (automatic tempering programmes).
Humidity control and low-vibration operation for optimal long term storage conditions.
Dark brushed stainless steel interior with bottle trays made of oak wood and solid aluminium in anthracite.
Fully extendable bottle trays with hidden telescopic rails and cushioned closing system.
Warm white, glare-free LED light concept with 3 pre-defined light scenarios and individual light settings.
Opening assist for the door with push-to-open for handleless fronts and pull-to-open when using a handle.
Full touch TFT display with easy access, animated quick guides and automatic brightness adjustment.
Capacity for 110 bottles (based on 0.75 l standard bottles) with total volume of 401 litres.
Dynamic cold air distribution and automatic defrosting with defrost water evaporation.
Activated charcoal air filter in each climate zone for constant air purification.
UV protection with UV transmission of 19 % to protect stored wine.
Rest mode certified by Star-K, with the appliance openable only using a handle when rest mode is active.
Open-door and malfunction alarm for additional safety and protection of stored bottles.
Selected digital services (Gaggenau Home Connect) including remote control, monitoring and software updates.
Personalisation functions for saving custom automatic tempering programmes and light scenario favourites.
10 bottle trays, 8 fully extendable, with space for a maximum of 11 bottle trays and flexible interior configuration.
Storage of Magnum bottles possible on every tray (up to 4 Magnum bottles).
Removable oak wood tray for presenting open bottles or decanters, plus a presenter to stage one wine bottle.
Energy efficiency class F with energy consumption of 132 kWh/year and noise level of 38 dB (A) re 1 pW.
Flat, reversible hinge with right door hinge as standard and door opening angle of 115 °, fixable at 90 °.
Lockable door (with door lock accessory) and cushioned door closing system.

Technical Specifications

Product name	RVW467170 wine climate cabinet Vario cooling Expressive series
Cabinet height	213.4 cm
Cabinet width	61 cm (24')
Climate zones	3 independently controllable climate zones (2 with automatic tempering programmes)
Temperature range (manual)	+5 °C to +20 °C
Temperature range (automatic tempering)	+3 °C to +20 °C
Total volume	401 litres
Bottle capacity	110 bottles (based on 0.75 l standard bottles)
Bottle trays supplied	10 bottle trays, 8 fully extendable; space for max. 11 bottle trays
Material (interior)	Dark brushed stainless steel
Material (bottle trays)	Oak wood and solid aluminium in anthracite
Lighting	Warm white and glare-free LED light bars (3000 K) in each climate zone; 3 pre-defined light scenarios
Energy efficiency class	F (range A to G)
Energy consumption	132 kWh/year
Noise level	38 dB (A) re 1 pW
Door hinge	Right, reversible; flat hinge
Door opening angle	115 °, fixable at 90 °
Max. door panel frame weight	71 kg
Operation height limit	No transport/operation above 2000 m sea level
Total connected load	0.300 KW
Connecting cable	3.0 m, pluggable
Rest mode certification	Star-K

Additional Details and Usage

Operation and control

The appliance features an opening assist for the door and a cushioned door closing system. User guidance is provided through light and display responses during operation, supported by an easy accessible full touch TFT display with animated quick guides for appliance usage and maintenance. Automatic brightness adjustment adapts lighting based on ambient illumination when the door is opened.

Temperature, air and humidity

Dynamic cold air distribution ensures consistent temperatures throughout. Humidity control and low-vibration operation support optimal long term storage conditions. The cabinet uses an IR-sensor for automatic wine tempering programmes and provides constant air purification with activated charcoal air filters in each climate zone, plus UV protection with 19 % UV transmission.

Lighting and presentation

Warm white, glare-free LED light bars (3000 K) are integrated in each climate zone for optimal wine presentation. There are 3 pre-defined light scenarios, with individual light settings and personalisation via favourites. A removable oak wood tray is included for presenting open bottles or decanters, alongside a presenter to stage one wine bottle.

Digital services

Selected digital services via Gaggenau Home Connect include remote control and monitoring of the appliance, software updates and a personalisation function for saving custom automatic tempering programmes and preferred light scenarios.

Safety and alerts

Safety features include an open-door alarm and malfunction alarm. In rest mode, certified by Star-K, the appliance can only be opened using a handle. The door can be locked with the appropriate door lock accessory.

Included and optional accessories

Included accessories: 2 x bottle holder grid plate; 1 x bottle presenter; 1 x wood plate.
Optional accessories (wine cabinet): Activated charcoal air filter, 2 pcs (RVA450220); extendable bottle tray, oak wood, RVW467 (RVA491660); wine presenter, oak wood, 1 piece set (RVA493060); removable tray, oak wood for RVW (RVA494060); glass hanger for RVW (RVA495000); bottle support for RVW467 61 cm (24') (RVA498660).
Installation accessories: Vario stainless steel handle 1131 mm (RA425110); front panel connection long (RA460020); door lock for RVW (RVA420010); stainless steel doorframe with handle left 61 cm (24') (RVA421622L); stainless steel doorframe with handle right 61 cm (24') (RVA421622R); side trims, 3 mm (RVA423141); stainless steel doorframe without handle 61 cm (24') (RVA428622); screw hole cover set for RVW (RVA430000); installations kit side-by-side (RVA460000); wine climate cabinet Vario cooling backward compatibility kit SbS door direction change kit wine 61 cm/24' (RVA466610).

Frequently Asked Questions

How many wine bottles can the RVW467170 hold?

The cabinet has a capacity of 110 bottles, based on 0.75 l standard bottles, with a total interior volume of 401 litres.

What temperature range does this wine climate cabinet offer?

In manual mode, the temperature range is from +5 °C to +20 °C. With automatic tempering programmes, the range is from +3 °C to +20 °C.

How many climate zones are available and are they independent?

The appliance provides 3 independently controllable climate zones, 2 of which feature automatic tempering programmes for precise drinking temperatures.

Can Magnum bottles be stored in this cabinet?

Yes. Storage of Magnum bottles is possible on every tray, with up to 4 Magnum bottles per tray.

Is the door hinge reversible?

The door hinge is right as standard but is reversible. A door direction change kit for 61 cm/24' wine units is available as accessory RVA466610.

Does the cabinet have air filtration and UV protection?

Each climate zone has an activated charcoal air filter for constant air purification, and the appliance provides UV protection with UV transmission of 19 %.
