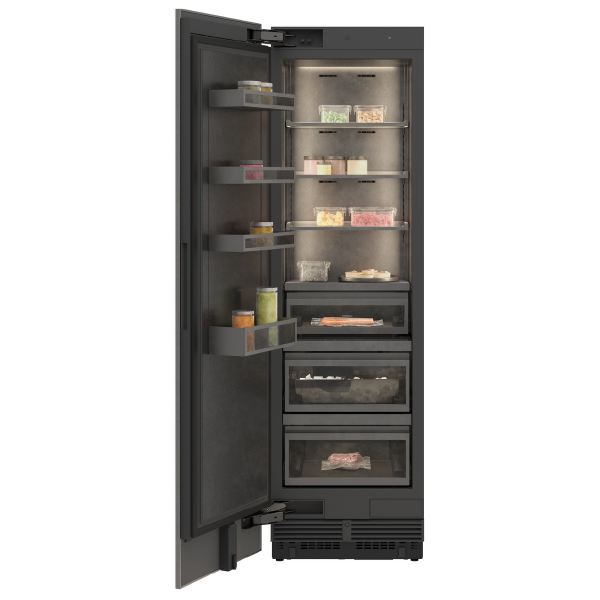

The Gaggenau RVF467190 is a freezer from the Vario cooling Expressive series, featuring a dark brushed stainless steel interior with solid anthracite aluminium elements and a flat inner door. It offers a total volume of 404 litres, no-frost technology and an integrated ice maker with fixed water connection. Warm white, glare-free LED lighting and flexible interior fittings make it suitable for users seeking high-quality freezing performance with refined design and precise electronic control.

Key Features

Dark brushed stainless steel interior refined with solid anthracite aluminium elements for a distinctive appearance.
Warm white, glare-free LED lighting (3000 K) provides optimal food presentation in all freezer compartments.
Total volume 404 litres for generous frozen food storage.
Opening assist for door with push-to-open function for handleless fronts and pull-to-open function for use with a handle.
No-frost technology with fast freezing at −30 °C and a temperature range adjustable from −16 °C to −24 °C.
4-star freezer compartment with freezing capacity of 25 kg / 24 h and storage time after a malfunction of 17 h.
Integrated ice maker with fixed water connection hidden in one drawer, producing approx. 2.4 kg ice / 24 h with approx. 3 kg storage.
Three fully extendable drawers with cushioned closing system for convenient access.
Aluminium-framed safety glass shelves (three, height-adjustable) and four height-adjustable door racks with hidden rail system.
Cushioned door closing system and flat dark brushed stainless steel inner door for smooth operation.
User guidance via hidden touch display with light and display response to drawer interaction and automatic brightness adjustment.
Open-door and malfunction alarm for increased user awareness.
Rest mode certified by Star-K; when active, the appliance can only be opened using a handle.
Selected digital services (Gaggenau Home Connect) including remote control, monitoring and software updates.
Energy efficiency class E with energy consumption of 306 kWh/year and noise level of 38 dB (A) re 1 pW.
Included accessories: 1 x ice cube scoop and 1 x large ice storage container.

Technical Specifications

Product series	Freezer Vario cooling Expressive series
Model	RVF467190
Dimensions	213.4 x 61 cm
Total volume	404 litres
Interior material	Dark brushed stainless steel with solid anthracite aluminium elements; flat dark brushed stainless steel inner door
Lighting	Warm-white, glare-free LED lighting, 3000 K, within freezer compartment
Freezing technology	No-frost technology with fast freezing at −30 °C; dynamic cold air distribution; automatic defrosting with defrost water evaporation
Temperature range	Adjustable from −16 °C to −24 °C
Freezer compartment rating	4-star freezer compartment
Freezing capacity	25 kg / 24 h
Storage time after malfunction	17 h
Shelves	3 aluminium-framed safety glass shelves, individually adjustable in height
Door racks	4 height-adjustable door racks with flexible positioning through hidden rail system
Drawers	3 fully extendable drawers with cushioned closing system
Ice maker	Hidden in one drawer; fixed water connection (inlet); can be switched off; approx. 2.4 kg ice / 24 h; removable ice storage container approx. 3 kg capacity; integrated particle filter in ventilation grille area with saturation indicator shown in touch display
Opening assist	Push-to-open for integration into handleless furniture front; pull-to-open for use with a handle
Door hinge	Flat hinge; door hinge left, reversible; door opening angle 115°, fixable at 90°; max. door panel weight 39 kg
Energy efficiency class	E (range of energy efficiency classes from A to G)
Energy consumption	306 kWh/year
Noise level	38 dB (A) re 1 pW
Digital connectivity	Selected digital services (Gaggenau Home Connect): remote control and monitoring; software updates
Special functions	Freezer burn protection; oxidation protection; rest mode certified by Star-K; open-door and malfunction alarm; user guidance through light and display response; automatic brightness adjustment based on ambient illumination
Electrical connection	Total connected load 0.300 KW; connecting cable 3.0 m, pluggable
Water connection	Water inlet; supply hose 1.8 m with 3/4' connection; water pressure 2 bar to 8 bar
Included accessories	1 x ice cube scoop; 1 x ice storage container large
Optional accessories	RA450012: Water filter Vario 400 installation accessories; RA425110: Vario SS handle 1131 mm; RA460020: Frontpanel connection long; RVA421620: SS door with handle 61 cm (24'); RVA423141: Side trims, 3 mm; RVA428620: SS door w/o handle 61 cm (24'); RVA460000: Installationskit side-by-side; RVA460020: Backward compatibility kit SbS; RVA466600: Door direction change kit 61 cm (24')

Additional Details and Installation Information

Handling and control

The appliance features opening assist for the door and a cushioned door closing system. User guidance is provided through light and display response to drawer interaction. A hidden touch display offers control, with automatic brightness adjustment based on ambient illumination.

Rest mode is certified by Star-K; when rest mode is active, the appliance can only be opened using a handle. Open-door and malfunction alarms are included.

Freezer interior and flexibility

Dynamic cold air distribution and automatic defrosting with defrost water evaporation support consistent performance. The drawers in the RVC and RVF models are positioned at the same height, so with side-by-side installation the glass shelves and door racks can be aligned on the same level. A hidden rail system allows flexible positioning of shelves and door racks.

Ice maker usage

The ice maker is hidden in one drawer to optimise usable space and operates with a fixed water connection. It can be switched off when not required. Ice cube production is approx. 2.4 kg per 24 h, with a removable ice storage container of approx. 3 kg capacity and an integrated, easily accessible ice cube scoop. A particle filter for the water inlet is integrated in the ventilation grille area, with saturation indicated in the touch display.

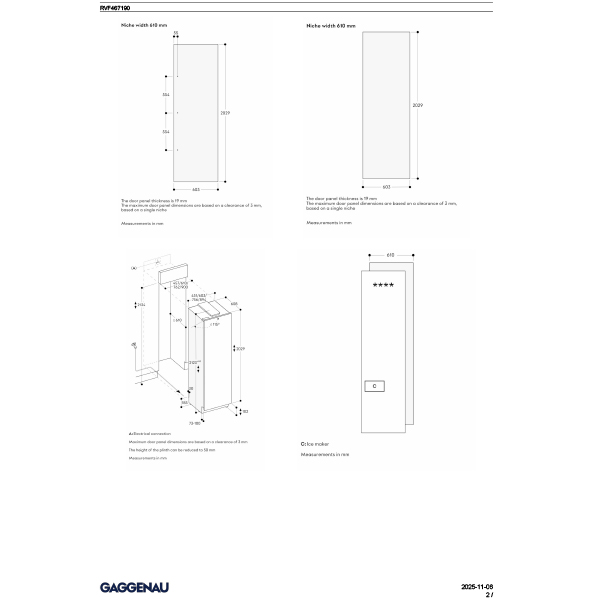

Planning and installation notes

Flat hinge with left door hinge, reversible.

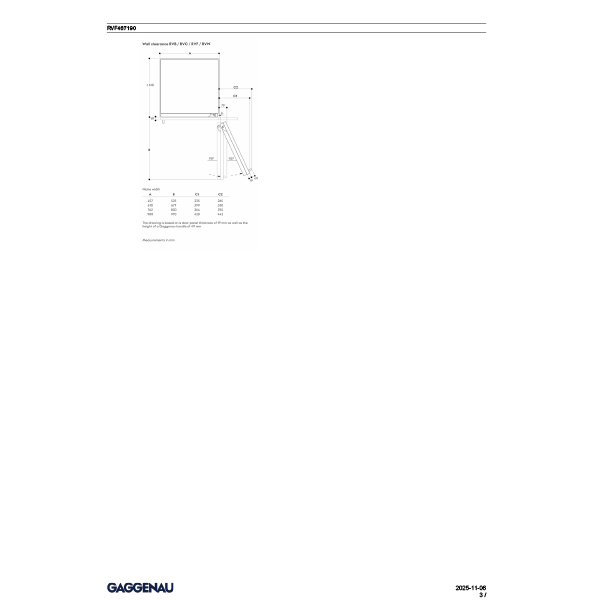

Door opening angle of 115°, fixable at 90°.
Maximum door panel weight: 39 kg.
A shut-off valve for the water connection must be planned next to the appliance and always be accessible.
If water pressure exceeds 0.8 MPa (8 bar), a pressure relief valve must be connected between the water tap and hose set.

Frequently Asked Questions

What is the capacity of the Gaggenau RVF467190 freezer?

The total volume of the RVF467190 freezer is 404 litres.

What temperature range can be set in the freezer?

The freezer temperature is adjustable from −16 °C to −24 °C, and it offers fast freezing at −30 °C with no-frost technology.

Does the RVF467190 have an integrated ice maker?

Yes. The ice maker is hidden in one drawer, uses a fixed water connection, can be switched off, produces approx. 2.4 kg of ice per 24 h and stores approx. 3 kg in a removable container.

What energy efficiency class and noise level does this model have?

The RVF467190 has energy efficiency class E with an energy consumption of 306 kWh/year and a noise level of 38 dB (A) re 1 pW.

Is the door hinge reversible?

Yes. The freezer is supplied with a left door hinge that is reversible. The door opening angle is 115° and can be fixed at 90°.

Which accessories are included and which are optional?

Included accessories are 1 x ice cube scoop and 1 x large ice storage container. Optional accessories include water filter Vario 400 installation accessories, Vario SS handle 1131 mm, frontpanel connection long, stainless steel doors with or without handle (61 cm / 24'), side trims, side-by-side installation kit, backward compatibility kit SbS and a door direction change kit 61 cm (24').
