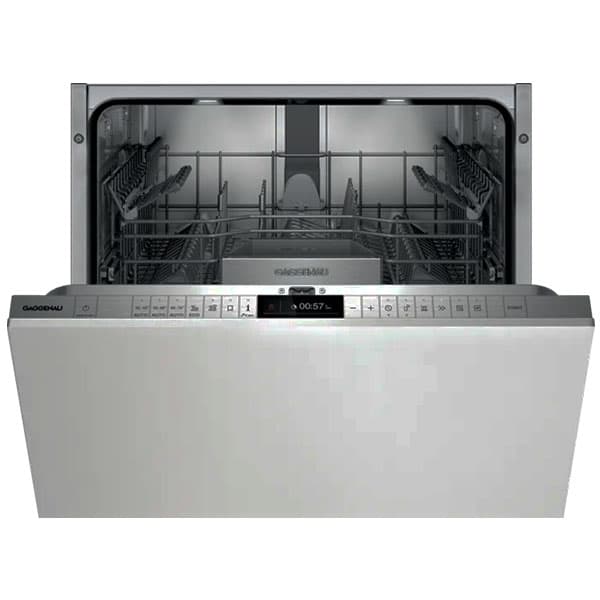

The DF271101F is a 60 cm built-in Dishwasher 200 series model with a variable hinge and push-to-open function for integration into handleless furniture fronts. It offers 6 programmes with aqua sensor, 3 options and a flexible basket system with smooth running rails on all levels. Bright interior lighting, lateral Info-Light, very quiet 43 dB operation and glass protection with zeolite support convenient, refined dishwashing performance.

Key Features

Push-to-open function for perfect integration into handleless furniture fronts.
6 programmes with aqua sensor and 3 options, including Power from 57 minutes and Intensive for thorough lower basket cleaning.
Flexible basket system with smooth running rails on all levels for convenient loading.
Bright interior lighting with two LED lights at the top front for a clearly illuminated interior.
Optimal protection for sensitive glassware via low temperature drying with zeolite, elaborated basket design and intelligent water softening.
Flexible hinge allowing reduced plinth height as of 50 mm or tall unit installation.
Lateral Info-Light for visual indication of programme status.
Very quiet operation at 43 dB (re 1 pW).
TFT display with touch key operation indicating remaining or end time, refill needs and water inflow.
Flexible cycle time reduction, even during an active cycle.
Personalisation function for saving individual combinations of programmes.
Drying assistant enabling optional door opening at the end of the programme.
Time delay up to 24 hours plus visual and acoustic end of programme indicator.
Glass protection with zeolite, aqua sensor and load sensor for tailored washing performance.
Integrated WiFi module enabling selected digital services (Gaggenau Home Connect), including downloadable programmes and software updates.
12 place setting capacity with maximum glass loading capacity of 23 wine glasses.
Energy efficiency class B at a range of energy efficiency classes from A to G.
Low water and energy consumption from 9.5 l water and from 0.626 kWh.
Comprehensive safety features including triple self-cleaning filter system, soft lock and aqua stop.

Technical Specifications

Product name	Dishwasher 200 series, DF271101F
Product type	60 cm dishwasher with variable hinge
Energy efficiency class	B (range A to G)
Noise level	43 dB (re 1 pW)
Water consumption	From 9.5 l water
Energy consumption	From 0.626 kWh
Place settings	12 place setting capacity
Maximum glass loading	23 wine glasses
Maximum dish sizes (upper/lower basket)	29/28, 26.5/30.5 or 24/34 cm respectively
Programmes	6 programmes with aqua sensor and 3 options
Options	Intensive, Power, Half Load
Additional function	Machine Care
Interior lighting	Two LED lights at top front, bright interior light
Display and controls	TFT display, touch key operation
Info-Light	Lateral Info-Light
Digital services	Selected digital services (Gaggenau Home Connect), downloadable programmes, programme assistant, temporary noise reduction, software updates
Connectivity	Integrated WiFi module for digital services (Home Connect)
Connected load	Total connected load 2.0 KW – 2.4 KW
Water connection	Water connection with 3/4 ' screw joint; connection to hot or cold water possible
Cable	Connecting cable plugable
Standby consumption	Power consumption standby/network 2 W; time auto-standby/network 2 min; left-on-mode duration 0 min
Plinth height compatibility	Flexible hinge for reduced plinth height as of 50 mm; appliance plinth recess 100 mm
Feet	Height-adjustable feet; rear feet adjustable at front
Door panel	Door weight up to 11 kg; door panel dimension dependent on plinth height of kitchen furniture
Furniture handle compatibility	Installation and usage also with furniture handle possible; push-to-open function remains active
Included accessories	1 x baking tray spray head; 1 x stainless steel trim kit
Optional accessories	DA041160: Cutlery Drawer with smooth running rails DA042030: Silver polishing cassette DA043000: Holder for long-stemmed glasses DA045061: 3. Basket with smooth running rails GZ010011: inlet and outlet hose extention
Installation accessories	GZ010011: inlet and outlet hose extention

Programmes, Functions and Interior Layout

Programmes

Auto 35 °C – 45 °C
Auto 45 °C – 65 °C
Auto 65 °C – 75 °C
Eco 50 °C
Quick wash 45 °C (35 min.)
Personalisation function (default setting: Pre-rinse)

Options and special functions

Intensive option.
Power option for cleaning and drying dishes from 57 minutes.
Half Load option.
Machine Care.
Flexible cycle time reduction, even during an active cycle.
Drying assistant for optional door opening at the end of the programme.
Time delay up to 24 hours.
Visual and acoustic end of programme indicator.
Information key with use indications.

Features and technology

Glass protection with zeolite.
Aqua sensor.
Load sensor.
Automatic detergent function.
Regeneration electronics.
Heat exchanger.
Continuous flow heater.
Triple filter system, self-cleaning.
Soft lock.
Aqua stop.

Interior layout

The appliance features a flexible basket system with smooth running rails on all levels and bright interior lighting.

Upper basket: over extension; optional extra cleaning area by activating additional spray nozzles; Rackmatic with 3 levels, adjustable in height up to 5 cm; 6 folding spines; 4 folding racks for optimal protection of glass.
Lower basket: 8 folding spines; 2 folding racks for optimal protection of glass; dividable glass support; cutlery basket.

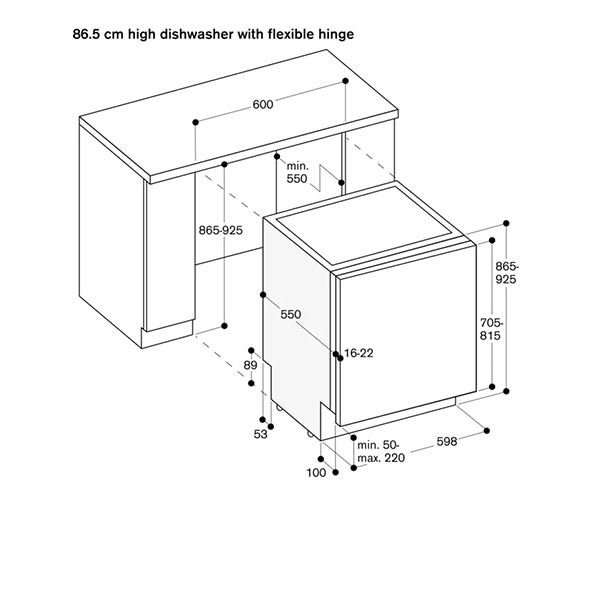

Planning and installation notes

Height-adjustable feet and rear feet adjustable at front.
Appliance plinth recess 100 mm.
Flexible hinge for reduced plinth height as of 50 mm or tall unit installation.
Door weight up to 11 kg; door panel dimension dependent on plinth height of kitchen furniture.
Installation and usage also possible with furniture handle; push-to-open function remains active.
Water connection with 3/4 ' screw joint; connection to hot or cold water possible.
Please check the user manual for how to switch off the WiFi module.

Frequently Asked Questions

How many programmes does the DF271101F offer?

The dishwasher offers 6 programmes with aqua sensor: Auto 35 °C – 45 °C, Auto 45 °C – 65 °C, Auto 65 °C – 75 °C, Eco 50 °C, Quick wash 45 °C (35 min.) and a personalisation function with default setting Pre-rinse.

What options are available to customise the wash cycle?

There are 3 options: Intensive, Power and Half Load. The Power option enables cleaning and drying dishes from 57 minutes. There is also flexible cycle time reduction, even during an active cycle, plus a personalisation function for saving individual combinations of programmes.

Is this dishwasher suitable for handleless kitchen fronts?

Yes. The DF271101F features a push-to-open function for perfect integration into handleless furniture fronts. Installation and usage are also possible with a furniture handle, and the push-to-open function remains active.

How does the dishwasher protect delicate glassware?

Glass protection is provided by low temperature drying with zeolite, an elaborated basket design and intelligent water softening. The upper and lower baskets include folding racks and supports designed for optimal protection of glass.

What is the place setting and glass capacity?

The dishwasher has a 12 place setting capacity. The maximum glass loading capacity is 23 wine glasses.

Does the DF271101F support Home Connect?

The appliance includes an integrated WiFi module for selected digital services (Gaggenau Home Connect), such as downloadable programmes, programme assistant, temporary noise reduction and software updates. The availability of Home Connect functionality depends on the availability of Home Connect Services in your country, and these services are not available in every country.
