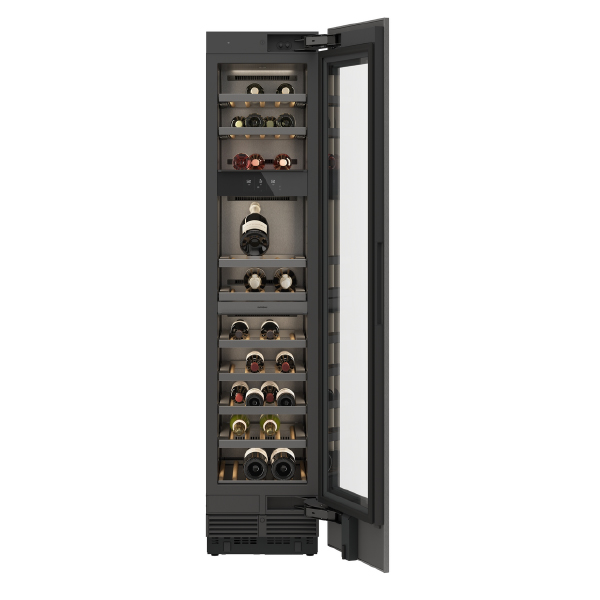

The Gaggenau RVW417170 is a wine climate cabinet from the Vario cooling Expressive series with three independently controllable climate zones and capacity for 68 bottles (0.75 l standard). It offers automatic tempering programmes, humidity control and low–vibration operation for long–term storage. Warm white, glare–free LED lighting and oak wood bottle trays present wine attractively, while features such as opening assist, full touch TFT display and selected digital services support convenient handling.

Key Features

3 independently controllable climate zones, including 2 with automatic tempering programmes.
Automatic tempering programmes with sensor–based control for precise drinking temperature.
Wide temperature range from +5 °C to +20 °C (manual mode) and from +3 °C to +20 °C (automatic tempering programmes).
Humidity control and low–vibration operation for optimal long–term storage conditions.
Dark brushed stainless steel interior with bottle trays made of oak wood and solid aluminium in anthracite.
Fully extendable bottle trays with hidden telescopic rails and cushioned closing system.
Warm white, glare–free LED light concept with 3 pre–defined light scenarios and individual light settings in all climate zones.
Opening assist for door with push–to–open function for handleless fronts and pull–to–open function for use with a handle.
Easy accessible full touch TFT display with animated quick guides for usage and maintenance.
Capacity for 68 bottles (based on 0.75 l standard bottles) and total volume of 280 litres.
Dynamic cold air distribution and automatic defrosting with defrost water evaporation.
Constant air purification by activated charcoal air filter in each climate zone.
UV protection with UV transmission of 19 %.
Rest mode certified by Star–K, during which the appliance can only be opened using a handle.
Open–door and malfunction alarm for added reassurance.
Selected digital services (Gaggenau Home Connect) with remote control, monitoring and personalisation of tempering programmes.
10 bottle trays in total, 8 of which are fully extendable, with space for a maximum of 11 trays.
Storage of Magnum bottles possible on every tray (up to 2 Magnum bottles).
Removable oak wood tray for presenting open bottles or decanters, plus a presenter to stage one wine bottle.
Energy efficiency class F with energy consumption of 121 kWh/year and noise level of 38 dB (A) re 1 pW.
Lockable door option when used with door lock RVA 420 010.
Flat hinge and reversible door with right hinge as standard and door opening angle of 115°, fixable at 90°.
Selected installation accessories available, including stainless steel door frames, handle options and side–by–side installation kits.
Optional interior accessories such as activated charcoal air filters, oak wood bottle trays, wine presenter, removable trays, glass hanger and bottle support.

Technical Specifications

Product type	Wine climate cabinet Vario cooling Expressive series
Model	RVW417170

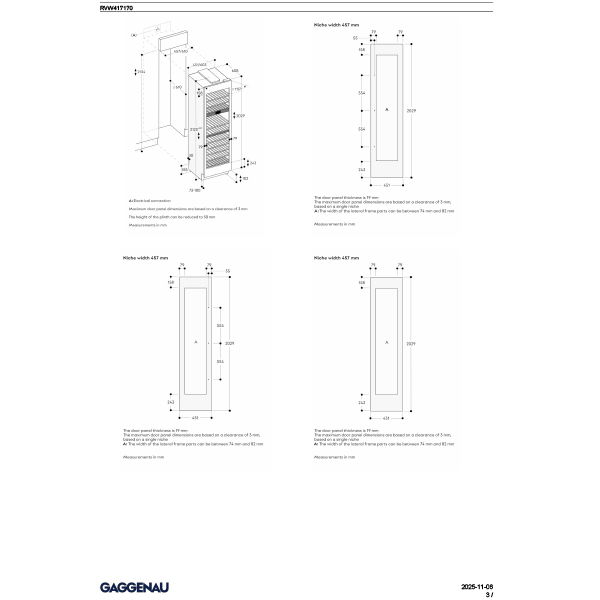

Dimensions	213.4 x 45.7 cm
Climate zones	3 independently controllable climate zones (2 with automatic tempering programmes)
Temperature range (manual mode)	+5 °C to +20 °C
Temperature range (automatic tempering)	+3 °C to +20 °C
Capacity	68 bottles (based on 0.75 l standard bottles)
Total volume	280 litres

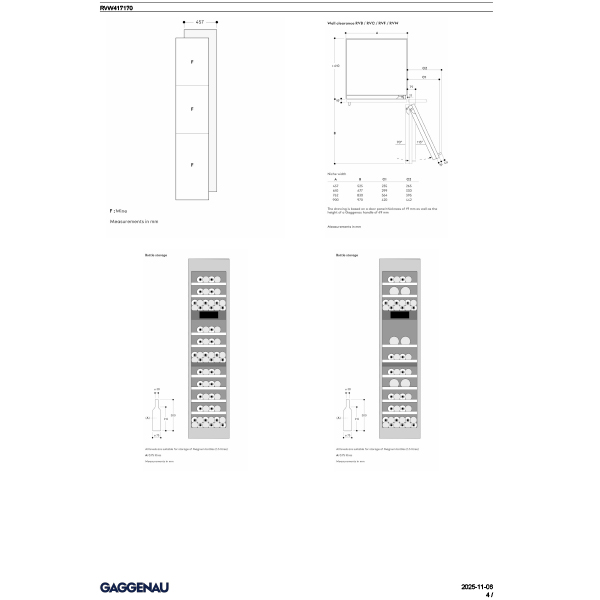

Bottle trays	10 bottle trays, thereof 8 fully extendable; space for max. 11 bottle trays
Magnum bottle storage	Storage of Magnum bottles possible on every tray (up to 2 Magnum bottles)
Interior design	Dark brushed stainless steel interior; bottle trays made of oak wood and solid aluminium in anthracite
Lighting	Warm white and glare–free LED light bars (3000 K) in each climate zone; 3 pre–defined light scenarios with individualisation possibility
Control display	Full touch TFT display
Air purification	Activated charcoal air filter in each climate zone
UV protection	UV transmission: 19 %
Energy efficiency class	F (range of energy efficiency classes from A to G)
Energy consumption	121 kWh/year
Noise level	38 dB (A) re 1 pW
Hinge type	Flat hinge; door hinge right, reversible
Door opening angle	115°, fixable at 90°
Max. door panel frame weight	74 kg
Installation altitude	No transport/operation above 2000 m sea level
Total connected load	0.300 kW
Connecting cable	3.0 m, pluggable
Included accessories	2 x bottle holder grid plate; 1 x bottle presenter

Additional Details and Usage

Handling and user guidance

The appliance features opening assist for the door and a cushioned door closing system. User guidance is provided through light and display responses during operation. The brightness adjusts automatically based on ambient illumination when the door is opened. An easy accessible full touch TFT display and animated quick guides assist with appliance usage and maintenance.

The door can be locked when used with the optional door lock RVA 420 010.

Cooling and storage features

Dynamic cold air distribution and automatic defrosting with defrost water evaporation support consistent performance. An IR sensor enables automatic wine tempering programmes, and constant air purification by activated charcoal air filters is provided in each climate zone. Humidity control and low–vibration operation help create optimal long–term storage conditions.

Lighting and presentation

Warm white, glare–free LED light bars (3000 K) in each climate zone provide optimal wine presentation. There are 3 pre–defined light scenarios and individual light settings, including favourites. A removable oak wood tray allows presentation of open bottles or decanters, and a dedicated presenter stages one wine bottle.

Digital services

Selected digital services via Gaggenau Home Connect include remote control and monitoring. A personalisation function allows saving of custom automatic tempering programmes, and light scenarios can be individualised and stored as favourites.

Rest mode and safety

Rest mode is certified by Star–K. When rest mode is active, the appliance can only be opened using a handle. An open–door and malfunction alarm is included.

Optional accessories

RVA450220: Activated charcoal air filter, 2 pcs
RVA491160: Extendable bottle tray, oak wood, RVW417
RVA493060: Wine presenter, oak wood, 1 piece set
RVA494060: Removable tray, oak wood for RVW
RVA495000: Glass hanger for RVW
RVA498160: Bottle support, for RVW417 45.7 cm (18')

Installation accessories

RA425110: Vario SS handle 1131 mm
RA460020: Frontpanel connection long
RVA420010: Door lock for RVW
RVA421122L: SS doorframe with handle left 45.7 cm (18')
RVA421122R: SS doorframe with handle right 45.7 cm (18')
RVA423141: Side trims, 3 mm
RVA428122: SS doorframe without handle 45.7 cm (18')
RVA430000: Screw hole cover set for RVW
RVA460000: Installationskit side–by–side
RVA460020: Backward compatibility kit SbS
Door RVW417170 direct. change kit 45.7 cm/18' wine

Frequently Asked Questions

How many wine bottles can the RVW417170 hold?

The cabinet has a capacity of 68 bottles, based on 0.75 l standard bottles, and a total volume of 280 litres.

How many climate zones does this wine cabinet have?

It provides 3 independently controllable climate zones, 2 of which feature automatic tempering programmes.

What temperature range is available for storing wine?

In manual mode, temperatures can be set from +5 °C to +20 °C. In automatic tempering programmes, the range is from +3 °C to +20 °C.

Is it possible to store Magnum bottles?

Yes. Storage of Magnum bottles is possible on every tray, with up to 2 Magnum bottles per tray.

What accessories are included with the RVW417170?

The appliance is supplied with 2 bottle holder grid plates and 1 bottle presenter.

Does the wine cabinet have a lockable door?

The door can be locked when the optional door lock RVA 420 010 is used.
