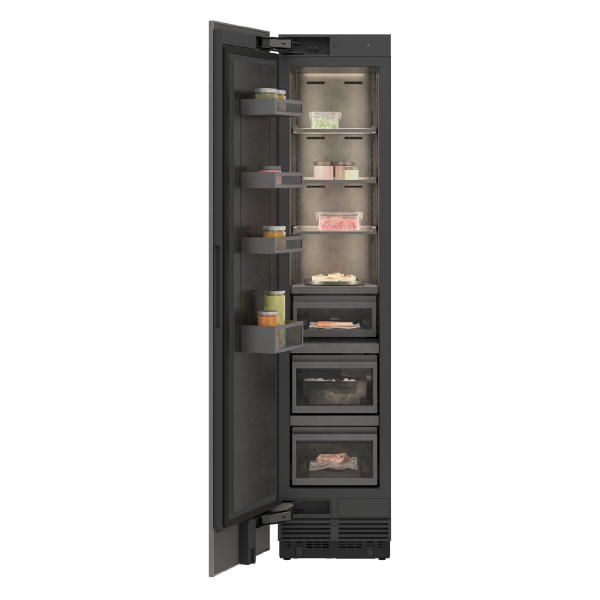

The RVF417190 is a freezer from the Vario cooling Expressive series with a total volume of 280 litres and a dark brushed stainless steel interior refined with solid anthracite aluminium elements. It features no-frost technology with fast freezing at −30 °C, a hidden ice maker with fixed water connection and warm white, glare-free LED lighting. Flexible shelves, fully extendable drawers and opening assist support convenient, modern kitchen integration.

Key Features

280-litre total volume for generous frozen food storage.
Dark brushed stainless steel interior refined with solid anthracite aluminium elements.
No-frost technology with fast freezing at −30 °C and 4-star freezer compartment.
Temperature adjustable from −16 °C to −24 °C with freezer burn and oxidation protection.
Integrated ice maker hidden in a drawer with fixed water connection, approx. 2.4 kg/24 h ice production.
Warm white, glare-free LED lighting (3000 K) for optimal food presentation in all compartments.
Opening assist for door with push-to-open for handleless fronts and pull-to-open for use with a handle.
3 aluminium-framed safety glass shelves, individually adjustable in height, plus 4 height-adjustable door racks.
3 fully extendable drawers with cushioned closing system for comfortable access.
Hidden touch display with user guidance and automatic brightness adjustment.
Dynamic cold air distribution and automatic defrosting with defrost water evaporation.
Home Connect digital services including remote control and monitoring (selected services).
Rest mode certified by Star-K, with opening only possible using a handle when active.
Open-door and malfunction alarm for added convenience.
Energy efficiency class E with energy consumption of 261 kWh/year and noise level of 38 dB(A) re 1 pW.
Flat dark brushed stainless steel inner door with flexible positioning of shelves and door racks via hidden rail system.
Cushioned door closing system with door hinge left, reversible and door opening angle of 115° (fixable at 90°).

Technical Specifications

Product type	Freezer Vario cooling Expressive series
Model code	RVF417190
Dimensions (H x W)	213.4 x 45.7 cm
Total volume	280 litres
Interior material	Dark brushed stainless steel, refined with solid anthracite aluminium elements
Lighting	Warm-white, glare-free LED lighting (3000 K) within freezer compartment
Freezer technology	No-frost technology with fast freezing at −30 °C, 4-star freezer compartment
Temperature range	−16 °C to −24 °C
Freezing capacity	16 kg / 24 h
Storage time after malfunction	10 h
Shelves	3 aluminium-framed safety glass shelves, individually adjustable in height
Door racks	4 height-adjustable door racks, flexible positioning through hidden rail system
Drawers	3 fully extendable drawers with cushioned closing system; ice maker hidden in one drawer
Ice maker	Fixed water connection, can be switched off; approx. 2.4 kg/24 h ice cube production; removable ice storage container approx. 2 kg capacity; integrated ice cube scoop; particle filter with saturation indicator in touch display
Controls and display	Hidden touch display; user guidance through light and display response to drawer interaction; automatic brightness adjustment based on ambient illumination
Door system	Opening assist (push-to-open and pull-to-open); cushioned door closing system; flat hinge; door hinge left, reversible; door opening angle 115°, fixable at 90°; max. door panel weight 55 kg; flat dark brushed stainless steel inner door
Alarms and modes	Open-door and malfunction alarm; rest mode certified by Star-K; when rest mode is active, appliance can only be opened using a handle
Connectivity	Selected digital services (Gaggenau Home Connect); remote control and monitoring
Energy efficiency class	E (range A to G)
Energy consumption	261 kWh/year
Noise level	38 dB (A) re 1 pW
Total connected load	0.300 KW
Connecting cable	3.0 m, pluggable
Water connection	Water inlet; supply hose 1.8 m with 3/4' connection; water pressure 2 bar to 8 bar; if water pressure exceeds 0.8 MPa (8 bar), connect pressure relief valve between water tap and hose set; shut-off valve must be planned next to the appliance and always be accessible
Included accessories	1 x ice cube scoop; 1 x ice storage container large
Optional accessories	RA450012 Water filter Vario 400 installation accessories; RA425110 Vario SS handle 1131 mm; RA460020 Frontpanel connection long; RVA421120 SS door with handle, 45.7 cm (18'); RVA423141 Side trims, 3 mm; RVA428120 SS door w/o handle 45.7 cm (18'); RVA460000 Installationskit side-by-side; RVA460020 Backward compatibility kit SbS; RVA466100 Door direction change kit 45.7 cm (18')

Additional Details and Usage

Storage and layout

The drawers in the RVC and RVF models are positioned at the same height so that, with side-by-side installation, the glass shelves and door racks can be aligned on the same level. Shelves and door racks have flexible positioning via a hidden rail system, supporting tailored organisation of frozen goods.

Door operation and handling

Opening assist offers two options: a push-to-open function for integration into handleless furniture fronts and a pull-to-open function for use with a handle. A cushioned door closing system enhances ease of use, and the flat hinge design allows a door opening angle of 115°, which can be fixed at 90°.

Defrosting and cold air distribution

Dynamic cold air distribution supports constant conditions throughout the compartment. The appliance features automatic defrosting with defrost water evaporation and no-frost technology, helping to maintain performance without manual defrosting.

Ice maker use and filtration

The ice maker is hidden in one drawer to optimise usable space and is supplied via a fixed water connection. It can be switched off when not required. Ice cube production is approximately 2.4 kg per 24 h, with a removable ice storage container of approximately 2 kg capacity. A particle filter for the water inlet is integrated in the ventilation grille area, with saturation indicated in the touch display.

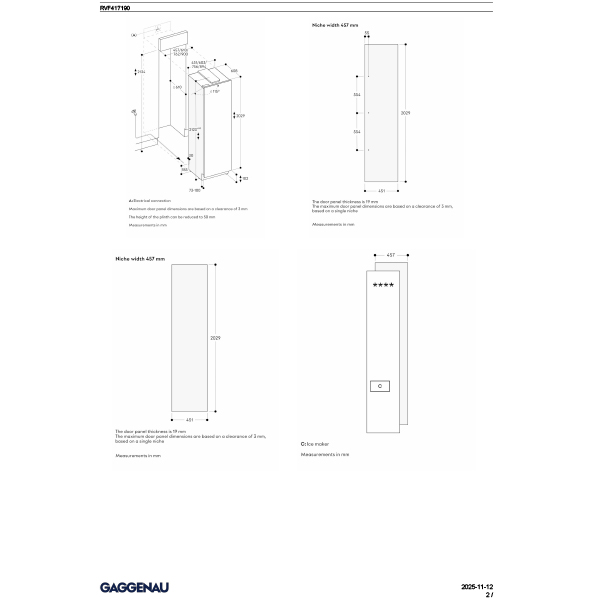

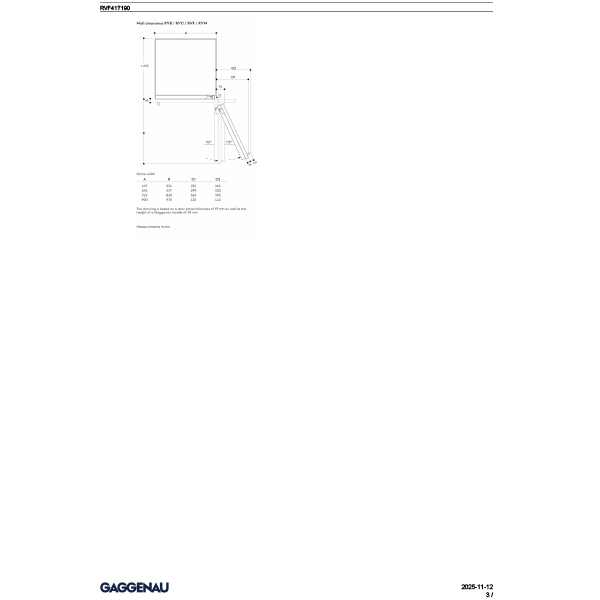

Planning and installation notes

A shut-off valve for the water connection must be planned next to the appliance and remain accessible. If the water pressure exceeds 0.8 MPa (8 bar), a pressure relief valve is required between the water tap and hose set. The door hinge is on the left and is reversible, with a maximum door panel weight of 55 kg. The appliance is designed with a flat hinge for integrated installation.

Digital services and rest mode

Selected digital services via Gaggenau Home Connect allow remote control and monitoring. The appliance includes a rest mode certified by Star-K; when this mode is active, it can only be opened using a handle.

Frequently Asked Questions

What is the total storage capacity of the RVF417190 freezer?

The RVF417190 has a total volume of 280 litres, providing substantial capacity for frozen food storage.

Does this freezer need manual defrosting?

No. It uses no-frost technology with automatic defrosting and defrost water evaporation, so manual defrosting is not required according to the stated features.

What are the temperature settings available?

The freezer temperature is adjustable from −16 °C to −24 °C, with fast freezing possible at −30 °C.

How much ice can the integrated ice maker produce?

The integrated ice maker produces approximately 2.4 kg of ice cubes per 24 h, with a removable ice storage container of approximately 2 kg capacity.

Is the RVF417190 suitable for handleless kitchen fronts?

Yes. The opening assist offers a push-to-open function for integration into handleless furniture fronts, as well as a pull-to-open function for use with a handle.

What is the energy efficiency rating and noise level?

The RVF417190 has an energy efficiency class E, with an energy consumption of 261 kWh/year and a noise level of 38 dB (A) re 1 pW.
