The 60cm Series 9 Contemporary Vacuum Seal Drawer prepares food for sous vide cooking with three levels of vacuum and heat sealing. Designed as a companion product, it supports marinating, storing, portioning and resealing food in food-grade, BPA-free bags. With intuitive capacitive touch controls, a handle-free push-to-open drawer and easy-clean stainless steel interior, it offers practical vacuum sealing performance in a contemporary built-in format.

Key Features

Effortless sous vide preparation – prepares food for sous vide cooking using controlled vacuum sealing.
Three vacuum and heat sealing levels – select from three levels of vacuum and sealing for storage, marinating or portioning.
Complementary contemporary design – available with a stylish black glass or elegant grey glass panel to pair with Minimal or Contemporary style ovens.
Vacuum sealing to preserve freshness – minimal air exposure hinders the growth of bacteria and mould, helps prevent freezer burn and protects food.
Reduces food waste – removes excess air, allowing food to be bought in bulk and safely sealed for longer shelf life.
Food-grade, BPA-free bags included – supplied with 100 BPA-free vacuum seal bags in small and large sizes.
Handle-free, push-to-open drawer – push-to-open operation for effortless loading and use.
Intuitive capacitive touch controls – responsive electronic touch interface with audio feedback.
Easy to clean interior – stainless steel interior and easy clean glass lid designed to be wiped down with a damp cloth.
External vacuuming capability – supplied external vacuuming accessory kit with adapter, stopper and tube.
Companion product flexibility – part of a suite of companion products designed to match for flexible configurations.
Full extension slides – drawer extends fully for convenient access to bags and sealing area.

Technical Specifications

Product type	Vacuum Seal Drawer
Series	Series 9 \| Contemporary
Model	VB60SDB1-SET
SKU	84238
Height	140 mm
Width	596 mm
Depth	566 mm
Usable height	85 mm
Usable capacity	7.8 L
Maximum vacuum seal bag size	240mm x 350mm
Vacuum levels	3
Vacuum sealing levels	3
Pump power	150
Pump pressure	10 Bar
External vacuuming	Yes
Prepare food for sous-vide cooking	Yes
Amperage	10 A
Supply voltage	240 V
Supply frequency	60 Hz
Power cord length	1800 mm
Power outlet	3-prong grounding-type
Front door alignment	Adjustable front door panel to align with surrounding cabinetry
Included bags	BPA-free vacuum seal bags – 100 bags included
Included large bags	50 large BPA-free vacuum seal bags, Part 793034
Included small bags	50 small BPA-free vacuum seal bags, Part 793033
External vacuuming accessory kit	Adapter, stopper and tube
Controls	Electronic capacitive touch controls; audio feedback; standby mode; push-to-open drawer; maintenance and moisture indicator
Cleaning features	Easy clean glass lid; easy clean stainless steel interior; removable sealing bar and cover
Drawer mechanism	Full extension slides

Additional Details and Usage

Sous vide preparation and marinating

The drawer prepares food for sous vide cooking by vacuum sealing in optimal conditions. Three levels of vacuum and heat sealing support food storage, marinating and portioning. Vacuum sealed food intensifies flavours, infuses marinades and retains freshness.

Food preservation and waste reduction

Vacuum sealing creates ideal conditions for longer food shelf life and storage by reducing air exposure. This hinders the growth of bacteria and mould, helps prevent freezer burn and protects food. By removing excess air, the drawer helps extend the lifespan of food, making it suitable for buying in bulk and sealing for longer shelf life.

The supplied food-grade, BPA-free bags are an excellent storage option and can be re-used if sealed and cut appropriately.

Operation and controls

The handle-free, push-to-open drawer enables effortless loading and operation. Electronic capacitive touch controls provide a responsive and intuitive interface, supported by audio feedback and a maintenance and moisture indicator. A standby mode is also included.

Cleaning and maintenance

The stainless steel interior can be wiped down with a damp cloth for easy cleaning. An easy clean glass lid and removable sealing bar and cover further support straightforward maintenance.

Design integration

The vacuum seal drawer offers a choice of stylish black glass or elegant grey glass front panel for seamless pairing with Minimal or Contemporary style ovens. An adjustable front door panel allows alignment with surrounding cabinetry, and full extension slides provide convenient access.

Frequently Asked Questions

What can this vacuum seal drawer be used for?

It prepares food for sous vide cooking and is designed for vacuum sealing food for marinating, storing, portioning and resealing.

How many vacuum levels does it offer?

The drawer provides three vacuum levels and three vacuum sealing levels, allowing you to choose settings for different food storage and preparation needs.

Are vacuum seal bags included?

Yes. It comes with 100 BPA-free vacuum seal bags: 50 small bags (Part 793033) and 50 large bags (Part 793034).

Is the interior easy to clean?

The stainless steel interior can be wiped down with a damp cloth. It also features an easy clean glass lid and a removable sealing bar and cover for easier cleaning.

Does it support external vacuuming?

Yes. The drawer offers external vacuuming and includes an external vacuuming accessory kit with adapter, stopper and tube.

VB60SDB1SET

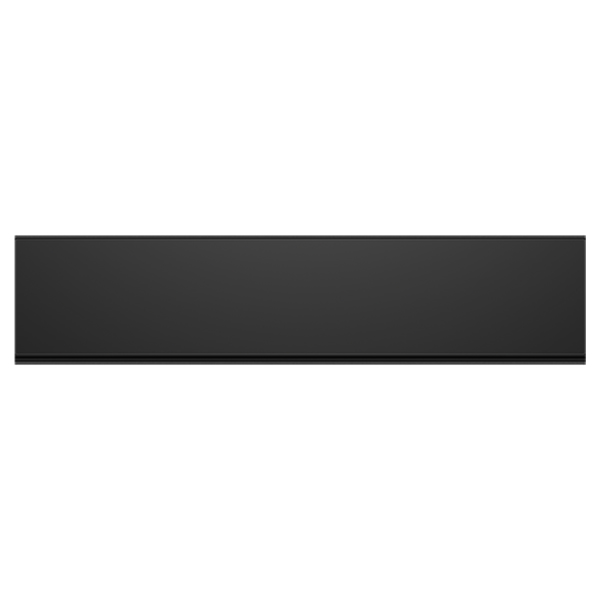

Fisher & Paykel VB60SDB1-SET Vacuum Drawer
