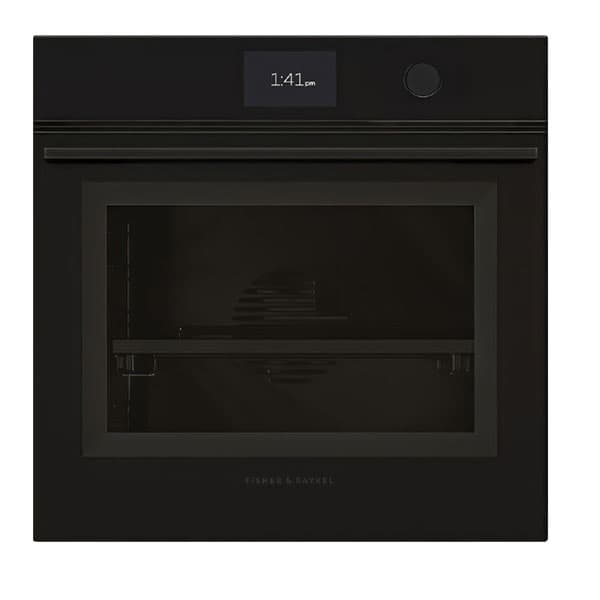

A highlight of the Fisher & Paykel collection, this 60cm Series 9 Minimal pyrolytic oven combines a large 85L capacity with touchscreen guided cooking to help ensure every dish is cooked to perfection. With 16 oven functions, including Pastry Bake, Roast, Air Fry and Dehydrate, it offers flexibility for a wide range of cooking styles. Pyrolytic self-cleaning and CoolTouch door technology support easy cleaning and safe everyday use in a considered kitchen design.

Key Features

Touchscreen guided cooking – large 5' intuitive touchscreen with guided cooking by food type and full recipes, plus automatic pre-set temperatures.
Generous 85L total capacity – create several perfectly cooked dishes at once using multiple shelves and non-tip, full-extension shelves.
16 oven functions – including Air Fry, Pastry Bake, Roast, Dehydrate, Bake, Classic bake, Fan bake, Fan forced, Fan grill, Grill, Pizza bake, Rapid proof, Slow cook, Vent bake, Warm and Pyrolytic self-clean.
Pyrolytic self-cleaning – breaks down food residue at a very high temperature, leaving light ash that is easily removed with a damp cloth.
ActiveVent™ and AeroTech™ technologies – help optimise moisture levels and circulate heat evenly for a consistent temperature and exceptional performance.
CoolTouch door and safety features – CoolTouch door, control panel key lock, safety thermostat, balanced oven door and non-tip shelves support safer operation.
Minimal, complementary design – Minimal style oven with subtle textural and tonal contrasts, available in black or grey finish to blend seamlessly into the kitchen.
Flexible controls – electronic oven control, automatic cooking/minute timer, delay start, adjustable audio and display settings, soft close doors and turned stainless steel dials with illuminated halos.
Smart appliance capability – smart appliance with wireless temperature sensor compatibility and supplied wired temperature sensor.
Energy-conscious performance – A+ energy rating with energy usage of 0.89kWh/cycle and an in-use energy carbon emissions estimate of 0.2kgCO2e/cycle.
Wide temperature range – temperature range from 35°C – 280°C with automatic rapid pre-heat.
Easy-clean interior – acid resistant graphite enamel, removable oven door and inner glass, removable shelf runners and pyrolytic proof shelf runners.
Multi-language display – intuitive touchscreen display with UK English multi-language display and Sabbath mode with Federation of Synagogues certification.

Technical Specifications

Product type	60cm Series 9 Minimal Pyrolytic Oven
Model	OB60SMPTDB1
SKU	82509
Height	598 mm
Width	596 mm
Depth	565 mm
Total capacity	85 L
Usable capacity	72 L
Shelf positions	6
Number of functions	16
Oven functions	Air fry; Bake; Classic bake; Dehydrate; Fan bake; Fan forced; Fan grill; Grill; Pastry Bake; Pizza bake; Pyrolytic self-clean; Rapid proof; Roast; Slow cook; Vent bake; Warm
Temperature range	35°C – 280°C
Grill power	3000 W
Energy rating	A+
Energy usage	0.89kWh/cycle
In-use energy carbon emissions estimate	0.2kgCO2e/cycle
Supply voltage	220 – 240 V
Supply frequency	50 Hz
Amperage	15 A
Interior finish	Acid resistant graphite enamel
Key technologies	ActiveVent™ system; AeroTech™ technology; Automatic rapid pre-heat; Whisper Quiet Cooking
Door type	CoolTouch door; balanced oven door; soft close doors
Controls	Electronic oven control; intuitive 5' touchscreen display; turned stainless steel dials with illuminated halos; electronic clock; automatic cooking/minute timer; delay start; adjustable audio and display settings; audio feedback; automatic pre-set temperatures; Celsius/Fahrenheit temperature selection
Lighting	Internal Light
Language support	Multi-language display – UK English
Sabbath mode	Sabbath mode with Federation of Synagogues certification
Smart features	Smart appliance; wireless temperature sensor compatible
Accessories included	Full extension sliding shelves 1; Grill rack 1 set; Roasting dish 1; Smokeless grill tray 1; Step down wire shelf 1; Wired temperature sensor 1; Pyrolytic proof shelf runners
Optional accessories	Wireless Temperature Sensor accessory (accessory sold separately)
Cleaning features	Pyrolytic self-clean; acid resistant graphite enamel; removable oven door; removable oven door inner glass; removable shelf runners; pyrolytic proof shelf runners; enamel coated side racks that do not need to be removed during pyrolytic cleaning
Safety features	CoolTouch door; control panel key lock; safety thermostat; non-tip shelves; balanced oven door; catalytic venting system
Design style and finish	Series 9 \| Minimal style oven with subtle textural and tonal contrasts; available in black or grey finish

Additional Details and Usage

Guided cooking and controls

Using the large 5' touchscreen, you can select a cooking method or hero ingredient and the oven will provide heat type and temperature recommendations. You can also select your preferred cooking functions, use automatic cooking and minute timers, and set a delay start. The interface includes adjustable audio and display settings, audio feedback, automatic pre-set temperatures and an electronic clock, with Celsius or Fahrenheit temperature selection.

Cooking performance and functions

The oven incorporates ActiveVent™ to help optimise moisture levels and AeroTech™ to circulate heat evenly for a consistent temperature. Automatic rapid pre-heat and Whisper Quiet Cooking support efficient, quiet operation. Each of the 16 functions has been tailored, tested and perfected so you have the right heat to match what you are cooking, from Air Fry and Dehydrate to Pastry Bake, Roast and Slow cook.

Capacity, shelving and accessories

With an 85L total capacity and six shelf positions, you can cook multiple dishes at once. Non-tip, full-extension shelves help ensure safe removal of hot dishes, and sturdy, fully extendable shelves slide all the way out to reduce the need to reach inside. Included accessories are one full extension sliding shelf, one set of grill rack, one roasting dish, one smokeless grill tray, one step down wire shelf, one wired temperature sensor and pyrolytic proof shelf runners.

Cleaning and maintenance

Pyrolytic self-cleaning breaks down food residue at a very high temperature, leaving a light ash that is easily removed with a damp cloth. The interior features acid resistant graphite enamel, and the enamel coated side racks do not need to be removed when using the pyrolytic function. The oven door and inner glass are removable, as are the shelf runners, and the shelf runners are pyrolytic proof.

Design and integration

This Minimal style oven is designed to blend seamlessly into the kitchen, with subtle textural and tonal contrasts. It is available in a black or grey finish to support a considered kitchen design, and can be paired with a Warming Drawer for an integrated kitchen solution.

Safety and certification

Safety features include a CoolTouch door that is safe to touch from the outside, a balanced oven door, control panel key lock, safety thermostat, non-tip shelves and a catalytic venting system. The appliance offers Sabbath mode with Federation of Synagogues certification.

Energy and carbon emissions information

All appliances use energy, and energy usage typically generates carbon emissions. The in-use energy carbon emissions estimate for this oven is 0.2kgCO2e/cycle, calculated using market-specific energy label data multiplied by the carbon emissions factor for energy in the relevant country or region. This estimate is designed to assist customers in making informed purchasing decisions when comparing Fisher & Paykel products.

Frequently Asked Questions

What is the capacity of the 60cm Series 9 Minimal Pyrolytic Oven?

The oven has a generous 85L total capacity with a usable capacity of 72L and six shelf positions, allowing you to cook several dishes at once using multiple shelves.

How does the pyrolytic self-cleaning function work?

Pyrolytic self-cleaning breaks down food residue at a very high temperature, leaving a light ash that can be easily removed with a damp cloth. The enamel coated side racks do not need to be removed when using this function, and the shelf runners are pyrolytic proof.

Which cooking functions are available?

There are 16 functions: Air fry, Bake, Classic bake, Dehydrate, Fan bake, Fan forced, Fan grill, Grill, Pastry Bake, Pizza bake, Pyrolytic self-clean, Rapid proof, Roast, Slow cook, Vent bake and Warm. Each function has been tailored, tested and perfected for specific cooking needs.

What accessories are supplied with the oven?

Included accessories are one full extension sliding shelf, one set of grill rack, one roasting dish, one smokeless grill tray, one step down wire shelf, one wired temperature sensor and pyrolytic proof shelf runners. The oven is also compatible with an optional Wireless Temperature Sensor accessory sold separately.

Is the oven door safe to touch during cooking?

Yes. The CoolTouch door is designed to be safe to touch from the outside. The oven also features a balanced oven door and non-tip shelves to support safe use.

Does the oven support Sabbath mode?

Yes. The oven includes Sabbath mode with Federation of Synagogues certification.
