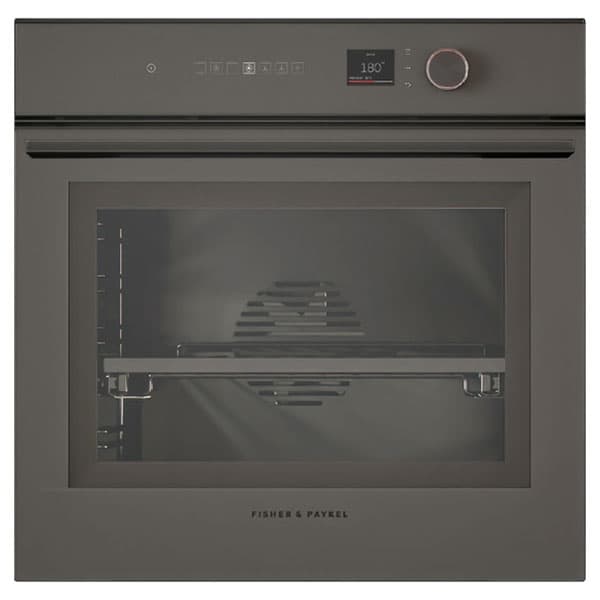

This 60cm Series 7 Minimal built-in pyrolytic oven combines refined styling with a generous 85L capacity for multi-shelf cooking. With 16 oven functions, including Pastry Bake, Roast, Dehydrate and Rapid Proof, it is designed to help every dish be cooked to perfection. AeroTech™ and ActiveVent™ technologies support even heat and optimised moisture, while pyrolytic self-cleaning simplifies maintenance. The Minimal design in black or grey complements a considered, seamless kitchen aesthetic.

Key Features

16 oven functions including Pastry Bake, Roast, Aero Broil, Dehydrate, Rapid Proof, Air fry, Pizza bake, Slow cook, Vent bake and more.
Generous 85L total capacity with multiple shelf positions for creating several perfectly cooked dishes at once.
AeroTech™ even heat circulation for consistent temperature, ideal for multi-shelf cooking.
ActiveVent™ system to ensure optimised moisture levels for exceptional cooking performance.
Pyrolytic self-cleaning breaks down food residue at very high temperature, leaving a light ash that’s easily removed with a damp cloth.
Enamel coated side racks do not need to be removed when using the pyrolytic self-clean function.
Intuitive 2.4' screen with guided cooking by food type, automatic temperature and heat-type adjustments.
Minimal style design with subtle textural and tonal contrasts, available in black or grey finishes.
CoolTouch door with triple glazing and a cooling system to help ensure the exterior is safe to touch.
Soft close doors and balanced oven door for smooth, controlled opening and closing.
Smart appliance capability and compatibility with a wireless temperature sensor.
Energy rating A+ with energy usage of 0.89kWh/cycle and an in-use energy carbon emissions estimate of 0.2kgCO2e/cycle.
Wide temperature range of 35°C – 280°C with automatic rapid pre-heat and Whisper Quiet Cooking.
Multi-language display with UK English, US English, Simplified Chinese, Français and Español.
Sabbath mode with Federation of Synagogues certification.
Comprehensive accessories included such as full extension sliding shelves, roasting dish, smokeless grill tray and wired temperature sensor.

Technical Specifications

Product type	60cm Series 7 Minimal Pyrolytic Oven, 16 Function
Series	Series 7 \| Minimal
Dimensions (H x W x D)	598 mm x 596 mm x 565 mm
Total capacity	85 L
Usable capacity	72 L
Shelf positions	6
Energy rating	A+
Energy usage	0.89kWh/cycle
In-use energy carbon emissions estimate	0.2kgCO2e/cycle
Temperature range	35°C – 280°C
Grill power	3000 W
Amperage / Rated current	15 A
Supply voltage	220-240 V
Supply frequency	50 Hz
Oven type	True convection oven
Cleaning type	Pyrolytic self-clean; acid resistant graphite enamel
Number of functions	16
Display	2.4' intuitive touchscreen display with audio feedback
Controls	Electronic oven control; electronic clock; turned stainless steel dials with illuminated halos
Smart features	Smart appliance; wireless temperature sensor compatible; guided cooking by food types; food probe
Lighting	Internal light
Cooling	CoolTouch door with cooling system; catalytic venting system
Safety features	Balanced oven door; control panel key lock; CoolTouch door; non-tip shelves; safety thermostat
Noise	Whisper Quiet Cooking
SKU	82548
Model reference	OB60SM16PLG1

Functions, Cleaning and Usage Details

Cooking functions

This oven offers 16 functions: Air fry, Bake, Classic bake, Dehydrate, Fan bake, Fan forced, Fan grill, Grill, Pastry Bake, Pizza bake, Pyrolytic self-clean, Rapid proof, Roast, Slow cook, Vent bake and Warm.

Guided cooking and controls

2.4' screen provides an intuitive guided cooking experience by food type.
Can change temperature and heat type automatically depending on selection.
Features adjustable audio and display settings, audio feedback and intuitive touchscreen display.
Includes automatic cooking/minute timer, automatic pre-set temperatures and delay start.
Supports Celsius/Fahrenheit temperature display and an electronic clock.

Cleaning and maintenance

Pyrolytic self-clean function breaks down food residue at a very high temperature.
After cleaning, residue becomes a light ash that can be removed with a damp cloth.
Acid resistant graphite enamel interior.
Enamel coated side racks and pyrolytic proof shelf runners do not need to be removed for cleaning.
Removable oven door, inner glass and shelf runners assist with maintenance.

Design and integration

The Minimal style oven is designed to blend seamlessly into the kitchen, with subtle textural and tonal contrasts. It is available in black or grey finishes to support a considered kitchen design and is designed to match the Minimal style family of cooking appliances.

Safety and comfort

CoolTouch door with triple glazing and cooling system helps ensure the exterior is safe to touch.
Balanced oven door and non-tip shelves enhance safe use.
Control panel key lock and safety thermostat provide added protection.

Performance technologies

ActiveVent™ system optimises moisture levels.
AeroTech™ technology circulates heat evenly for a consistent temperature.
Automatic rapid pre-heat and Whisper Quiet Cooking enhance day-to-day performance.

Included accessories

1 set full extension sliding shelves
1 set grill rack
Pyrolytic proof shelf runners
1 roasting dish
1 smokeless grill tray
1 step down wire shelf
1 wired temperature sensor

Frequently Asked Questions

How many cooking functions does this oven have?

The oven has 16 functions, including Air fry, Bake, Classic bake, Dehydrate, Fan bake, Fan forced, Fan grill, Grill, Pastry Bake, Pizza bake, Pyrolytic self-clean, Rapid proof, Roast, Slow cook, Vent bake and Warm.

What is the capacity of the oven?

The oven has a generous 85L total capacity with 72L usable capacity and six shelf positions, allowing several dishes to be cooked at once using multiple shelves.

How does the pyrolytic self-clean function work?

The pyrolytic self-clean function breaks down food residue at a very high temperature, leaving a light ash that can be easily removed with a damp cloth. The enamel coated side racks and pyrolytic proof shelf runners do not need to be removed during this process.

What helps ensure even cooking on multiple shelves?

AeroTech™ technology circulates heat evenly throughout the oven for a consistent temperature, making it ideal for multi-shelf cooking. ActiveVent™ works alongside this to optimise moisture levels.

Is the oven door safe to touch during use?

The CoolTouch door features triple glazing and a cooling system designed so the outside of the door is safe to touch, helping protect hands and surrounding cabinetry.

Does the oven support Sabbath mode?

Yes. The oven has a Sabbath mode with Federation of Synagogues certification.

OB60SM16PLG1

Fisher & Paykel Series 7 OB60SM16PLG1 Single Oven
