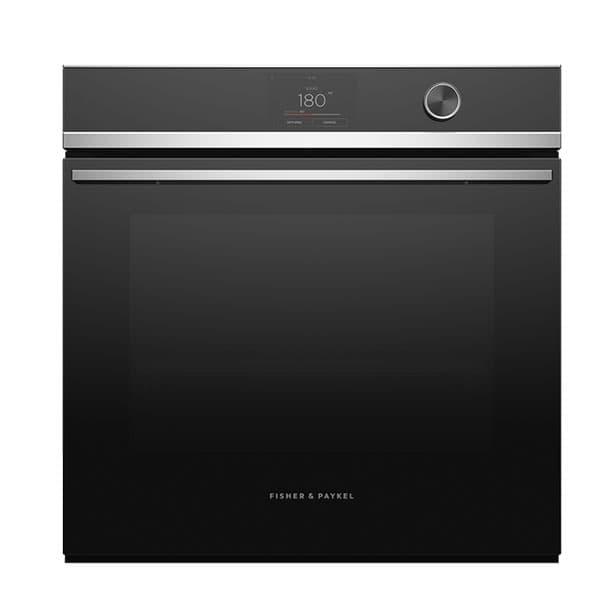

This 60cm Series 9 Contemporary Pyrolytic Oven from Fisher & Paykel is a built-in true convection oven with an 85L total capacity and 16 oven functions, including Air Fry, Roast, Pastry Bake and Dehydrate. A large 5' intuitive touchscreen enables guided cooking by food type and recipes, with automatic heat and temperature recommendations. ActiveVent and AeroTech technologies support consistent results, while pyrolytic self-cleaning, CoolTouch door and non-tip, full-extension shelves enhance convenience and safety.

Key Features

Touchscreen guided cooking – large 5' intuitive display with guided cooking by food type and full recipes, plus automatic heat and temperature recommendations.
Generous 85L total capacity – create several dishes at once across multiple shelves, with non-tip, full-extension shelves for safe removal of hot dishes.
16 oven functions – includes Air fry, Bake, Classic bake, Dehydrate, Fan bake, Fan forced, Fan grill, Grill, Pastry Bake, Pizza bake, Rapid proof, Roast, Slow cook, Vent bake, Warm and Pyrolytic self-clean.
Pyrolytic self-cleaning – breaks down food residue at very high temperature into a light ash that is easily removed with a damp cloth; enamel coated side racks do not need to be removed.
ActiveVent moisture control – optimises moisture levels, while AeroTech technology circulates heat evenly for a consistent temperature.
True convection oven – designed to deliver exceptional cooking performance with automatic rapid pre-heat and whisper quiet cooking.
CoolTouch door and safety features – CoolTouch door safe to touch from the outside, with balanced oven door, control panel key lock, safety thermostat, catalytic venting system and non-tip shelves.
Design freedom – built-in contemporary design with premium materials and detailing to fit seamlessly into a cohesive kitchen style.
Flexible controls – adjustable audio and display settings, delay start, automatic cooking/minute timer, automatic pre-set temperatures and electronic oven control.
Smart appliance capability – supports smart appliance functionality and multi-language display, including UK English.
Sabbath mode – Sabbath mode with Federation of Synagogues certification.
Included accessories – full extension sliding shelves, grill rack, roasting dish, smokeless grill tray, step down wire shelf, wired temperature sensor and pyrolytic proof shelf runners.
Energy efficiency – A energy rating with energy usage of 0.91kWh per cycle and in-use energy carbon emissions estimate of 0.2kgCO2e per cycle.

Technical Specifications

Product type	60cm Series 9 Contemporary Pyrolytic built-in oven
Model	OB60SDPTDX2
SKU	82523
Height	598 mm
Width	596 mm
Depth	565 mm
Total capacity	85 L
Usable capacity	72 L
Shelf positions	6
Energy rating	A
Energy usage	0.91kWh/cycle
In-use energy carbon emissions estimate	0.2kgCO2e/cycle
Temperature range	35°C – 280°C
Grill power	3000 W
ActiveVent system	ActiveVent™ system
Heat circulation	AeroTech™ technology; True convection oven
Pyrolytic self-clean	Pyrolytic self-clean function
Interior finish	Acid resistant graphite enamel; enamel coated side racks
Cleaning features	Pyrolytic self-clean; pyrolytic proof shelf runners; removable oven door; removable oven door inner glass; removable side ladders
Controls and display	Intuitive touchscreen display; adjustable audio and display settings; audio feedback; automatic cooking/minute timer; automatic pre-set temperatures; Celsius/Fahrenheit temperature; delay start; electronic clock; electronic oven control; internal light; multi-language display including UK English
Smart features	Smart appliance; guided cooking by food type and recipes; temperature sensor
Functions (number)	16 functions
Functions (list)	Air fry; Bake; Classic bake; Dehydrate; Fan bake; Fan forced; Fan grill; Grill; Pastry Bake; Pizza bake; Pyrolytic self-clean; Rapid proof; Roast; Slow cook; Vent bake; Warm
Performance features	ActiveVent™ system; AeroTech™ technology; automatic rapid pre-heat; whisper quiet cooking
Safety features	Balanced oven door; catalytic venting system; control panel key lock; CoolTouch door; non-tip shelves; safety thermostat
Door closing	Soft close doors
Power supply	Supply voltage 220 – 240 V; supply frequency 50 Hz; amperage 15 A
Included accessories	1 set full extension sliding shelves; 1 set grill rack; pyrolytic proof shelf runners; 1 roasting dish; 1 smokeless grill tray; 1 step down wire shelf; 1 wired temperature sensor
Optional accessory	Wireless Temperature Sensor accessory (sold separately)
Colour / finish	Contemporary design with premium materials (exact colour not stated in source)

Additional Details and Usage

Cooking and programmes

Using the large 5' touchscreen, you can select a cooking method or hero ingredient and the oven provides recommended heat type and temperature. Each function is tailored and tested to match specific cooking needs, with options such as Air Fry, Roast, Pastry Bake, Dehydrate, Rapid proof, Slow cook and Warm. A wired temperature sensor is included, and a Wireless Temperature Sensor accessory is available separately for precise, real-time monitoring.

Cleaning and maintenance

Pyrolytic self-cleaning operates at a very high temperature to break down food residue into a light ash, which can be removed with a damp cloth. The enamel coated side racks are designed so they do not need to be removed during the pyrolytic cycle. Acid resistant graphite enamel, pyrolytic proof shelf runners, a removable oven door, removable inner door glass and removable side ladders support easier cleaning access.

Safety and convenience

The CoolTouch door remains safe to touch from the outside while cooking. Sturdy, fully extendable, non-tip shelves slide all the way out to reduce the need to reach inside. Safety is supported by a balanced oven door, safety thermostat, catalytic venting system and control panel key lock. Soft close doors add to everyday ease of use.

Design integration

This built-in Contemporary oven is designed to fit seamlessly into a considered kitchen design, with premium materials and detailing that coordinate across the Fisher & Paykel collection.

Energy and emissions information

The in-use energy carbon emissions estimate indicates carbon emissions from energy used per cycle, based on market-specific energy label data multiplied by the applicable carbon emissions factor. This estimate is intended to help customers compare Fisher & Paykel products, for example when considering products such as heat pump dryers compared with vented dryers.

Frequently Asked Questions

What is the total and usable capacity of this oven?

The oven has an 85L total capacity with a usable capacity of 72L. There are six shelf positions, allowing you to cook several dishes at once using multiple shelves.

Which cooking functions are available?

There are 16 functions: Air fry, Bake, Classic bake, Dehydrate, Fan bake, Fan forced, Fan grill, Grill, Pastry Bake, Pizza bake, Pyrolytic self-clean, Rapid proof, Roast, Slow cook, Vent bake and Warm.

How does the pyrolytic self-cleaning function work?

During pyrolytic self-clean, the oven heats to a very high temperature to break down food residue into a light ash. Once cooled, the ash can be wiped away with a damp cloth. The enamel coated side racks remain in place and do not need to be removed.

What safety features does this oven have?

Safety features include a CoolTouch door, balanced oven door, control panel key lock, non-tip shelves, catalytic venting system and a safety thermostat. Sturdy, fully extendable shelves reduce the need to reach into the cavity.

Is there guided cooking support?

Yes. The large 5' intuitive touchscreen offers guided cooking by food type and recipes. You can select a cooking method or hero ingredient and the oven suggests suitable heat type and temperature settings.

Which accessories are included with the oven?

Included accessories are one set of full extension sliding shelves, one set of grill rack, pyrolytic proof shelf runners, one roasting dish, one smokeless grill tray, one step down wire shelf and one wired temperature sensor. A Wireless Temperature Sensor accessory is available separately.

OB60SDPTDX2

Fisher & Paykel Series 9 OB60SDPTDX2 Single Oven
