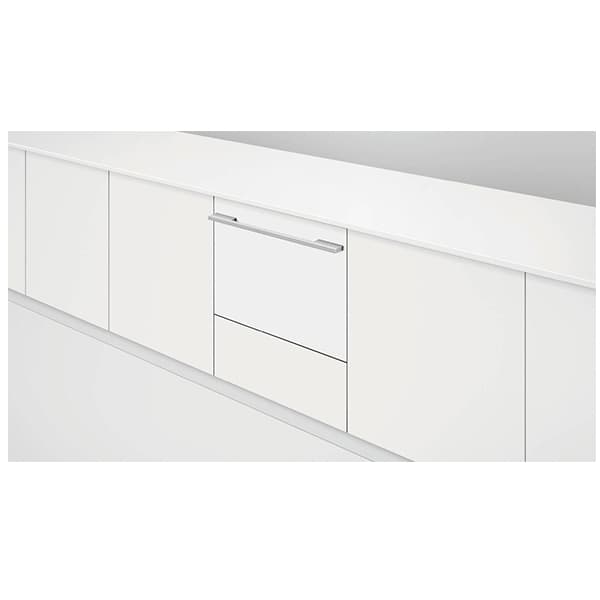

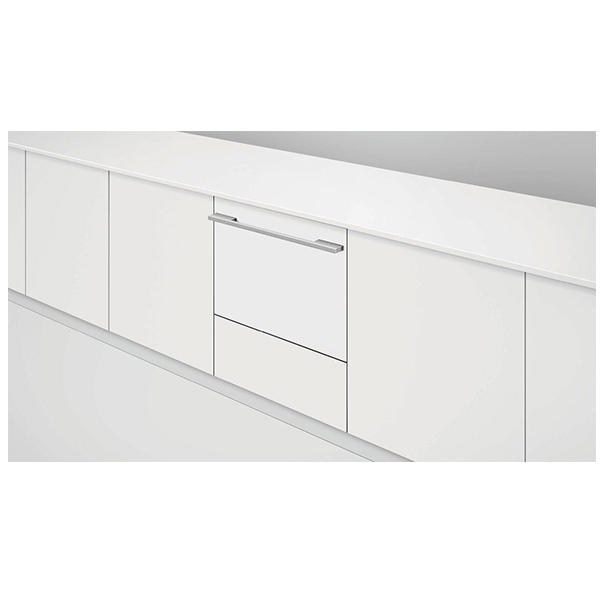

This Series 11 Integrated Tall Single DishDrawer™ Dishwasher is designed for ergonomic placement at bench height, offering easy loading and seamless integration with surrounding cabinetry. It provides eight wash programmes, flexible racking for plates up to 310mm and a premium stainless steel interior. Quiet 44dBA performance, soft-close drawer, knock to pause function and Wi-Fi capability with SmartHQ™ app support deliver convenient, efficient dishwashing for modern kitchens.

Key Features

Integrated tall single DishDrawer™ design for placement at bench height and seamless integration with surrounding cabinetry.
Eight wash cycles from Heavy to Light, including Auto, 60min, Glassware, Eco, Medium and Rinse.
Flexible racking system with adjustable height and foldable cup racks, fold down and pitch adjustable tines, plus wine glass supports with stemware grippers.
Accommodates plates up to 310mm and provides six place settings for versatile loading.
Soft-close drawer for smooth operation and ease of use.
Knock to pause convenience pauses the dishwasher with a knock on the front panel, then restarts via the start button.
Premium stainless steel interior that is easy to clean and includes a spray arm sensor that detects jams.
Quiet performer at 44dBA, with a Quiet wash modifier that reduces noise on some cycles while maintaining performance.
Wi-Fi capability and SmartHQ™ app for remote control and notifications as a smart appliance.
Fan assisted drying and Extra Dry modifier for added drying performance.
Built-in water softener and flow through detergent dispenser for efficient washing.
Efficient performance using only the energy needed without compromising wash performance.
Flood protection and spray arm sensing for added wash confidence.
SmartDrive™ technology and BLDC motor combining intelligent technology and simple mechanics.
Energy rating D with energy usage of 49kWh/100 cycles and water usage of 6.4L per wash cycle.

Technical Specifications

Product type	Series 11 Integrated Tall Single DishDrawer™ Dishwasher
Height	454 mm
Width	599 mm
Depth	553 mm
Place settings	6
Maximum plate diameter	Accommodates round plates up to 310mm
Wash programmes	8 (60 min, Auto, Eco, Glassware, Heavy, Light, Medium, Rinse)
Wash modifiers	3 (Dry +, Quiet, Sanitise)
Noise emissions	44 dBA
Energy rating	D
Energy usage	49kWh/100 cycles
In-use energy carbon emissions estimate	9.5kgCO2e/100 cycles
Water usage (per wash cycle)	6.4L
Internal tub material	Stainless steel
Motor type	BLDC with SmartDrive™ technology
Drying system	Fan assisted drying, Extra Dry modifier (Dry +)
Water softener	Built-in water softener
Flood protection	Flood protection included
Controls and indicators	Touch-sensitive internal control panel, electronic fault/diagnostic indicator, end of cycle beeps, internal wash selector, keylock, rinse aid indicator light
Smart connectivity	Wi-Fi capable, SmartHQ™ app, smart appliance
Power supply	220 – 240V, 50Hz, 5A
Water pressure	100kPa – 1000kPa
Water supply connection	3/4' BSP (20mm) Connector Water Inlet Hose, SKU 82174
Delay start	Energy saving delay start option of up to 12 hours
Quiet operation	Quiet operation feature and Quiet wash modifier
Included accessories	Cutlery basket; Knife clip and multipurpose clip
Optional door panels	Black stainless steel (ADDD60STPB); Recessed handle black stainless steel (ADDD60STNB); Recessed handle matte black glass (ADDD60STZB); Recessed handle stainless steel (ADDD60STNX); Stainless steel (ADDD60STPX)
Optional handle kits	Classic (AHCL-DDDW-60X); Contemporary round aluminium (AHS-OBDD-60S); Contemporary square fine aluminium (AHD5-OBDD-60SX); Contemporary square fine black (AHD5-OBDD-60B); Contemporary square aluminium (AHD3-OBDD-60S); Contemporary square black (AHD3-OBDD-60B)

Additional Details and Usage

Single DishDrawer™ Dishwashers can be distributed throughout the kitchen to support patterns of use. The touch-sensitive control panel is located inside the integrated model, providing an uninterrupted exterior that blends with cabinetry. Positioning at bench height helps reduce bending when loading and unloading.

Flexible racking includes adjustable height, foldable cup racks, fold down and pitch adjustable tines, and wine glass supports with stemware grippers, allowing different cookware and glassware to be accommodated. The easy-to-clean stainless steel interior and spray arm sensor that detects jams are designed for consistent wash performance.

Eight wash programmes include Heavy, Medium, Light, Auto, 60min, Eco, Glassware and Rinse. Modifiers such as Sanitise, Extra Dry (Dry +) and Quiet provide additional flexibility, with the Quiet modifier reducing noise on some cycles while maintaining performance, making it suitable for late night washing.

For ease of use, a knock on the front panel pauses the dishwasher, which can be restarted using the start button. Energy saving delay start of up to 12 hours, electronic fault and diagnostic indicator, end of cycle beeps, keylock and rinse aid indicator light support everyday operation. Flood protection and spray arm sensing add reassurance during use.

The appliance uses the energy it needs without compromising wash performance. In-use Energy Carbon Emissions Estimate is provided per 100 cycles to assist with comparing products, using energy label consumption data and regional emissions factors. This helps customers make informed purchasing decisions when assessing energy use and associated emissions.

Frequently Asked Questions

How many place settings does the tall Single DishDrawer™ hold?

The tall Single DishDrawer™ Dishwasher provides capacity for 6 place settings and accommodates round plates up to 310mm in diameter, with flexible racking to support other large cookware and glassware.

Which wash programmes are available?

There are eight wash programmes: Heavy, Medium, Light, Auto, 60min, Eco, Glassware and Rinse. Three wash modifiers – Sanitise, Extra Dry (Dry +) and Quiet – allow further tailoring of each cycle.

How quiet is this dishwasher during operation?

This DishDrawer™ Dishwasher operates at a low noise level of 44dBA. The Quiet wash modifier further reduces noise on some cycles while maintaining wash performance, which is useful for late night operation.

Does the appliance support remote control?

Yes. It has Wi-Fi capability and works with the SmartHQ™ app for remote control and notifications, and is described as a smart appliance in the specifications.

What safety and protection features are included?

Safety and protection features include flood protection, spray arm sensing to detect jams, keylock, electronic fault and diagnostic indicator, and SmartDrive™ technology with simple mechanics for reliability.

What are the water and energy usage figures?

The dishwasher has an energy rating of D, with energy usage of 49kWh per 100 cycles and water usage of 6.4L per wash cycle. The in-use energy carbon emissions estimate is 9.5kgCO2e per 100 cycles.
