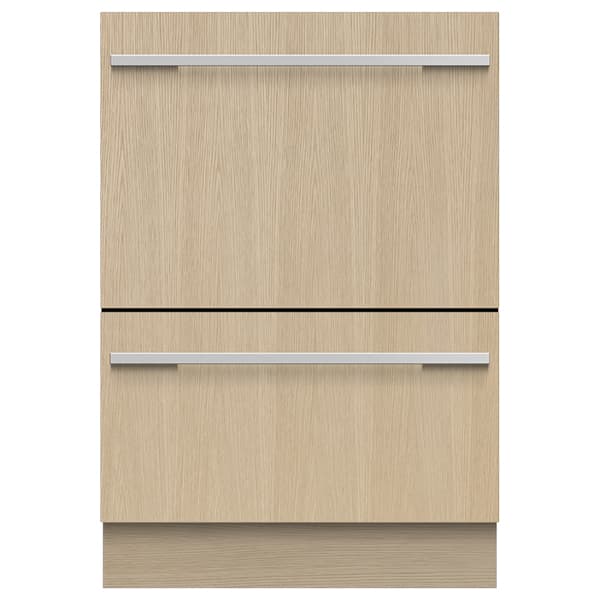

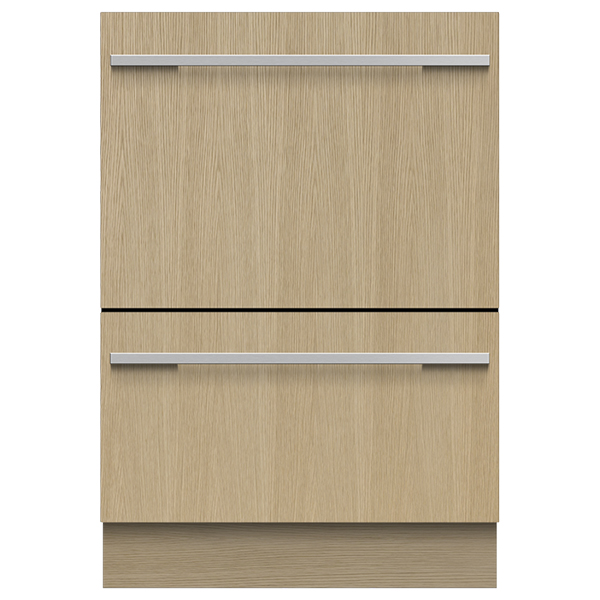

The Series 11 Integrated Tall Double DishDrawer™ Dishwasher is designed to integrate seamlessly into kitchen cabinetry, with an uninterrupted exterior and touch controls inside. Each soft-close drawer operates independently, offering eight wash cycles from Heavy to Light, including Auto, 60min and Glassware. Flexible racking accommodates plates up to 310mm and other large cookware, while Wi‑Fi capability and the SmartHQ™ app support remote control and notifications.

Key Features

Integrated design – installs into existing spaces or kitchen cabinetry, with an uninterrupted exterior and internal touch-sensitive control panel.
Double DishDrawer™ flexibility – two drawers that operate independently for true half loads or simultaneous different cycles.
Tall top drawer capacity – fits larger plates and dishes up to 310mm in the upper drawer and up to 280mm in the lower drawer.
Eight wash programmes – Heavy, Medium, Light, Auto, 60 min, Eco, Glassware and Rinse, for a wide range of dishwashing needs.
Wash modifiers for added flexibility – Sanitise, Extra Dry (Dry +) and Quiet options provide tailored wash performance.
Soft-close drawers – DishDrawer™ design with smooth, soft-close operation for everyday ease of use.
Flexible racking system – height-adjustable cup racks, fold-down tines, pitch adjustable tines and wine glass supports with stemware grippers.
Premium stainless steel interior – easy-to-clean stainless steel internal tub with quality materials throughout.
Spray arm sensing – sensor detects spray arm jams for increased wash confidence.
Knock to pause function – a knock on the front panel pauses the dishwasher, which restarts with the start button.
Wi‑Fi capable smart appliance – compatible with the SmartHQ™ app for remote control and notifications.
Quiet operation – Quiet wash modifier and quiet operation design, with noise on standard cycle (top drawer) of 45 dBA.
Efficient performance – uses the energy needed without compromising wash performance, with water usage of 6.4L per drawer per wash cycle.
Built-in water softener – helps manage water quality for dishwashing.
Fan assisted drying – supports effective drying at the end of the wash cycle.
Flood protection – integrated flood protection feature.
SmartDrive™ technology – BLDC motor with SmartDrive™ for reliable performance.
Energy rating D – energy usage of 49kWh/100 cycles per drawer and an in-use energy carbon emissions estimate of 9.5kgCO2e/100 cycles per drawer.
Place settings – accommodates 12 place settings in total, with 6 place settings per drawer.
Safety and control – keylock, electronic fault/diagnostic indicator, rinse aid indicator light and end of cycle beeps.

Technical Specifications

Product type	Series 11 Integrated Tall Double DishDrawer™ Dishwasher
Installation	Integrated
Height	865 – 925 mm
Width	599 mm
Depth	553 mm
Place settings (total)	12
Place settings per drawer	6
Maximum plate size (upper drawer)	310mm
Maximum plate size (lower drawer)	280mm
Wash programmes	8
Wash programme list	Heavy, Medium, Light, Auto, 60 min, Eco, Glassware, Rinse
Wash modifiers	3 (Dry +, Quiet, Sanitise)
Energy rating	D
Energy usage	49kWh/100 cycles per drawer
In-use energy carbon emissions estimate	9.5kgCO2e/100 cycles per drawer
Water usage (per wash cycle)	6.4L per drawer
Noise level (standard cycle, top drawer)	45 dBA
Smart connectivity	Wi‑Fi capability and SmartHQ™ app compatibility; Smart appliance
Controls	Touch-sensitive internal control panel, internal wash selector, keylock, end of cycle beeps, electronic fault/diagnostic indicator, energy saving delay start option of up to 12 hours, rinse aid indicator light, knock to pause
Interior material	Stainless steel internal tub
Motor type	BLDC with SmartDrive™ technology
Drying system	Fan assisted drying
Water softener	Built-in water softener
Flood protection	Yes (flood protection)
Power supply	220 – 240V, 50Hz, 10A
Water connection	Water pressure 100kPa – 1000kPa; water supply 3/4' BSP (20mm) Connector Water Inlet Hose
SKU	82172
Accessories included	Cutlery basket; knife clip and multipurpose clip; kickstrip
Accessories (sold separately)	Door panel black stainless steel (ADDD60DTPB); door panel stainless steel (ADDD60DTPX); handle kit Classic (AHCL-DDDW-60X); handle kit Contemporary round, aluminium (AHS-OBDD-60S); handle kit Contemporary square fine, aluminium (AHD5-OBDD-60SX); handle kit Contemporary square fine, black (AHD5-OBDD-60SB); handle kit Contemporary square, aluminium (AHD3-OBDD-60S); handle kit Contemporary square, black (AHD3-OBDD-60B)
Quiet Mark certified	Quiet mark certified

Additional Details and Usage

This integrated tall Double DishDrawer™ dishwasher is designed for seamless installation into existing kitchen spaces or cabinetry, with the touch-sensitive control panel located inside for an uninterrupted exterior.

Each drawer supports true half loads and operates independently, allowing you to run one wash while stacking the other drawer, or run both simultaneously on separate cycles. The tall top drawer suits larger plates and dishes up to 310mm, while the bottom drawer is ideal for smaller washes.

Flexible wash options include eight programmes from Heavy to Light, with Auto, 60min, Eco, Glassware and Rinse, plus modifiers such as Sanitise, Extra Dry (Dry +) and Quiet. The Quiet modifier reduces noise on some cycles while maintaining performance, which is suitable for late night washing.

The interior features height-adjustable cup racks, fold-down and pitch adjustable tines, and wine glass supports with stemware grippers. A built-in water softener, flow through detergent dispenser, fan assisted drying, spray arm sensing and flood protection further support effective and confident dishwashing.

For convenience, the knock to pause function allows you to pause the dishwasher with a knock on the front panel, then restart using the start button. Energy saving delay start of up to 12 hours, keylock, and end of cycle beeps help you manage operation and safety.

The in-use energy carbon emissions estimate is based on market-specific energy label consumption data multiplied by the carbon emissions factor for energy in your country or region, to assist comparison with other Fisher & Paykel products.

Frequently Asked Questions

How many place settings can this dishwasher hold?

It accommodates 12 place settings in total, with 6 place settings per drawer.

What size plates will fit in the drawers?

The tall top drawer fits larger plates and dishes up to 310mm, while the lower drawer accommodates round plates up to 280mm.

Can I run different wash cycles in each drawer?

Yes. Each drawer operates independently, so you can wash one load while stacking the other drawer, or wash simultaneously on separate cycles.

What wash programmes are available?

There are eight wash programmes: Heavy, Medium, Light, Auto, 60 min, Eco, Glassware and Rinse. Modifiers include Sanitise, Extra Dry (Dry +) and Quiet.

Does this dishwasher have smart connectivity?

Yes. It has Wi‑Fi capability and is compatible with the SmartHQ™ app for remote control and notifications, and is described as a smart appliance.

How quiet is the dishwasher during operation?

Noise on the standard cycle for the top drawer is 45 dBA. It features quiet operation and a Quiet wash modifier, and is Quiet mark certified.
