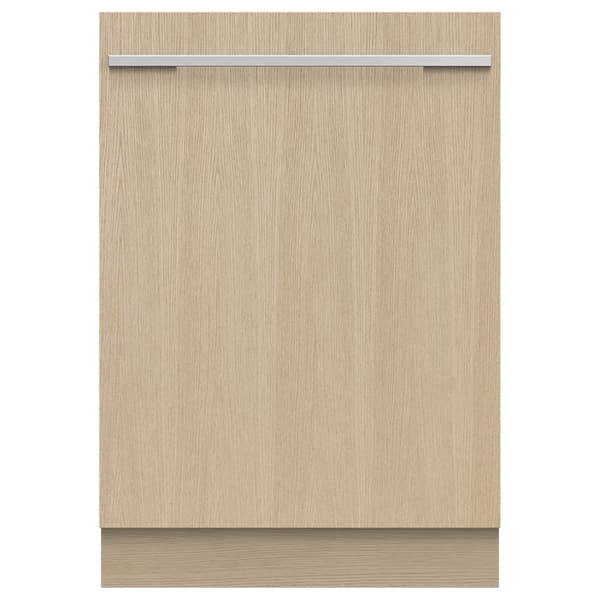

This Series 7 integrated dishwasher is designed to blend seamlessly into kitchen cabinetry, with the option to customise the front panel and handle. It offers eight wash programmes from Heavy to Light, plus Dry+, Half Load, Intensive and Sanitise modifiers for flexible performance. Advanced fan-assisted drying with Auto Door Open helps deliver beautifully dry dishes, while Wi-Fi connectivity with the SmartHQ™ app enables remote control and notifications.

Key Features

Seamless integration – Customise with your own front panel and handle to match your kitchen cabinetry.
Eight wash programmes – Heavy to Light, including Auto, 60min, Eco, Glassware, Medium and Rinse.
Advanced drying performance – Fan-assisted drying with Auto Door Open and an air curtain to help protect adjacent benchtops and cabinetry.
Sanitise function – Sanitise modifier kills 99.99% of bacteria in the final rinse, certified to NSF/ANSI Standard 184.
Flexible loading capacity – Designed for 16 place settings with adjustable racks, cutlery tray, cup holders and wine glass supports.
Quiet operation – Very low noise emissions of 42 dBA for quieter dishwashing.
Wi-Fi enabled – Connects with the SmartHQ™ app for remote control and notifications.
Efficient cleaning system – Three-stage filtration system and variable wash pressure technology for a superior clean.
Energy and water performance – Energy rating B, 66 kWh/100 cycles and 9.5L water usage per wash cycle.
Built-in water softener – Helps optimise wash performance in different water conditions.
Safety and protection features – Aquastop, flood protection and keylock for added peace of mind.
Internal stainless steel tub – Durable internal tub material in stainless steel.

Technical Specifications

Product type	Integrated dishwasher, Series 7 \| Integrated
Model	DW60U4HI2
Installation	Integrated, customisable front panel and handle
Height	820 – 880 mm
Width	597 mm
Depth	554 mm
Place settings	16
Energy rating	B
Energy usage	66 kWh/100 cycles
In-use energy carbon emissions estimate	12.8kgCO2e/100 cycles
Water usage per wash cycle	9.5L
Noise emissions	42 dBA
Motor type	BLDC
Internal tub material	Stainless Steel
Wash programmes	8 (60 min, Auto, Eco, Glassware, Heavy, Light, Medium, Rinse)
Wash modifiers	4 (Dry+, Half load, Intensive, Sanitise)
Delay start	Energy saving delay start option of up to 24 hours
Water pressure	30kPa – 1000 kPa
Water supply connection	3/4' BSP (20mm) Connector Water Inlet Hose
Amperage	10A
Supply frequency	50Hz
Supply voltage	220 – 240V
Included accessories	Cutlery basket; Kickstrip
Optional accessories (sold separately)	Door panel black stainless steel ADDW60PB; Door panel stainless steel ADDW60PX; Handle kit Classic AHCL-DDDW-60X; Handle kit Contemporary square fine, aluminium AHD5-OBDD-60SX; Handle kit Contemporary square fine, black AHD5-OBDD-60SB
SKU	84224

Programmes, Functions and Usage Details

Wash programmes

The dishwasher offers eight wash programmes: Heavy, Medium, Light, 60 min, Auto, Eco, Glassware and Rinse. The Auto programme automatically senses the optimal wash settings for your dishes.

Wash modifiers

Dry+ – A modifier that is ideal for plastic dishes.
Sanitise – Kills 99.99% of bacteria in the final rinse, certified to NSF/ANSI Standard 184.
Half Load – For faster turnaround of partial loads.
Intensive – Provides extra wash options for more demanding loads.

Drying system

The advanced drying system combines fan-assisted drying with Auto Door Open at the end of the cycle, releasing excess steam so dishes are ready for use or storage. An innovative air curtain channels steam away from the adjacent benchtop to help protect nearby cabinetry.

Loading and capacity

Accommodates round plates up to 320mm in the lower basket.
Accommodates round plates up to 220mm in the top basket with the cutlery tray.
Full width cutlery/utensil tray for small utensils.
Easy lift adjustable upper basket.
Adjustable height, foldable cup racks.
Fold down tines and fold down wine racks.
Wine glass supports with stemware grippers.

Controls and indicators

Energy saving delay start option of up to 24 hours.
Floor light cycle feedback.
Internal light.
Internal wash selector.
Keylock.
Rinse aid indicator light.
Smart appliance connectivity.

Safety and protection

Aquastop and flood protection features.
Air curtain for bench protection from steam.
Keylock function.
Built-in water softener.
Fully independent spray arms and three-stage filtration system.

Frequently Asked Questions

How many place settings does this integrated dishwasher hold?

It is designed to accommodate 16 place settings, with flexible loading options including an adjustable middle rack, cutlery tray, cup holders and wine glass supports.

What are the main wash programmes available?

The dishwasher offers eight wash programmes: Heavy, Medium, Light, 60 min, Auto, Eco, Glassware and Rinse. The Auto programme automatically senses the optimal wash settings for your dishes.

What does the Sanitise function do?

The Sanitise modifier kills 99.99% of bacteria in the final rinse and is certified to NSF/ANSI Standard 184, providing an extra level of hygiene.

How quiet is this integrated dishwasher during operation?

It operates at a very low decibel rating of 42 dBA, with clever technology and simple mechanics designed for quiet performance and reliability.

Can I match the dishwasher front to my kitchen cabinetry?

Yes, you can customise the dishwasher with your own front panel and handle to match your cabinetry. Optional door panels and handle kits are also available separately.

Is this dishwasher Wi-Fi enabled?

Yes, it is Wi-Fi enabled and connects with the SmartHQ™ app for remote control and notifications.

DW60U4HI2

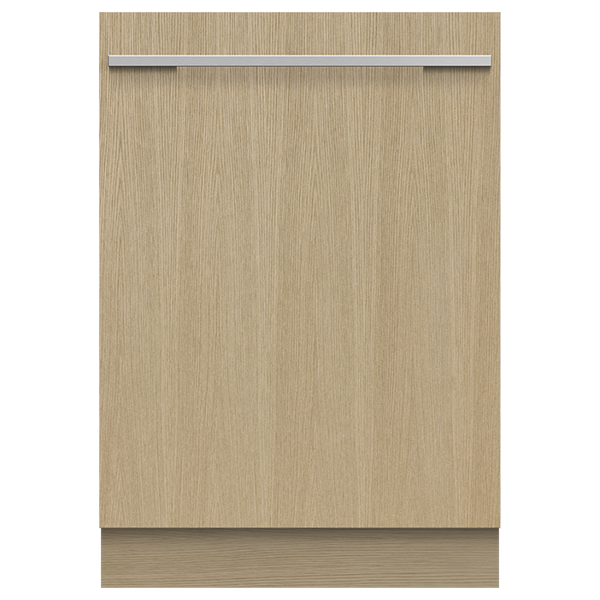

Fisher & Paykel Series 7 DW60U4HI2 Dishwasher
