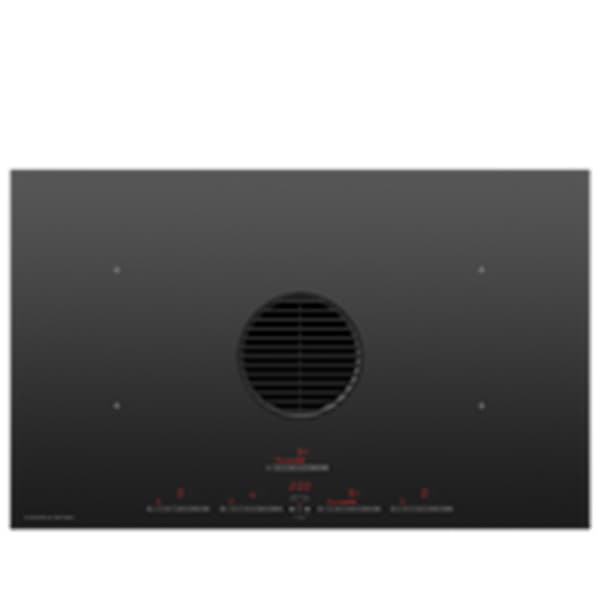

A true two-in-one appliance, this 83cm Series 9 Minimal induction hob combines the precision of four-zone induction cooking with powerful integrated extraction. Designed for seamless integration without bulky overhead ventilation, it suits islands and open-plan spaces. With SmartZone pairing, nine fan speeds plus boost, and sleek black glass with matte black detailing, it offers accurate temperature control, effective recirculating ventilation and easy cleaning in a cohesive, considered kitchen design.

Key Features

Two-in-one induction hob with integrated ventilation – combines precise induction cooking with powerful extraction in one seamless hob.
Seamless kitchen integration – can be placed anywhere, eliminating overhead ventilation and ideal for islands or homes with high ceilings.
Four cooking zones with SmartZone – simple pairing of two zones to create a SmartZone for larger cookware.
Nine fan speeds plus boost – select the perfect extraction rate, with boost for quickly removing odours and steam.
Recirculating ventilation – works effectively and unobtrusively in the background by recirculating vented air.
Minimal style, sleek black glass finish – subtle black glass with durable matte black detailing for cohesive kitchen design.
Precise temperature control – extremely accurate from very high to very low heats, with Touch&Slide controls that react immediately.
Safety of induction – heats only when cookware is on the surface and stops when removed, with pan detection and surface hot indicators.
Superior efficiency – less heat wasted as only the cookware is heated, making induction more energy-efficient than electric or gas hobs.
Easy to clean – single flat glass surface, dishwasher safe grease filter and flush ventilation grille for effortless wiping and sliding of pots.
Gentle heat and PowerBoost – nine heat settings including gentle heat and PowerBoost for extra power when needed.
Soft-touch electronic Touch and Slide controls – intuitive operation with auto cut-off timer for each zone and minute timer.
Energy rating A+ – designed with efficient performance in mind.
Brushless motor downdraft system – integrated ventilation with multiple ducting directions and recirculation capability.

Technical Specifications

Product type	83cm Series 9 Minimal 4 Zone Induction Hob with Integrated Ventilation
Series	Series 9 \| Minimal
SKU	82234
Height	217 mm
Width	830 mm
Depth	515 mm
Number of zones	4
SmartZone	SmartZone 3700 W
Zone ratings – left front	2100W (PowerBoost set 3000W)
Zone ratings – left rear	2100W (PowerBoost set 3000W)
Zone ratings – right front	2100W (PowerBoost set 3000W)
Zone ratings – right rear	2100W (PowerBoost set 3000W)
Heat settings	9
Induction cooking technology	Yes
Gentle heat	Yes
PowerBoost	Yes
Pause function	Yes
Energy rating	A+
Controls	Soft-touch electronic controls; Touch and slide controls
Timers	Auto cut-off timer for each zone; Minute timer
Downdraft air outlet size	333mm W x 33 mm H (Toekick outlet)
Air speeds	9 + boost
Brushless motor	Yes
Ducting direction	Front (ducting included), Side & Rear (ducting optional)
Maximum air flow (Boost)	660 m³/hr
Maximum air flow (Level 9)	623 m³/hr
Minimum air flow	192 m³/hr
Maximum noise level (Boost)	70 dBA
Maximum noise level (Level 9)	69 dBA
Minimum noise level	38 dBA
Recirculation	Yes
Maximum power	7.4 kW
Supply frequency	60 Hz
Electrical connection	Terminal block
Safety features	Keylock; Pan detection system; Safety time out; Surface hot indicators
Cleaning features	Dishwasher safe grease filter; Flat easy clean glass surface; Flush grille; Odour filter 3x Ceramic
Accessories (sold separately)	Replacement recirculation filter 50183 FR-DD; Duct 1m Connector 218x55 82394 D1-C-218-55; Elbow 90° 222x218x55 82395 E90-222218-55

Additional Details and Usage

Installation and integration

This hob offers true design freedom and can be placed anywhere, eliminating the need for bulky overhead ventilation. It can be installed raised or flush, making it well suited to kitchen islands and spaces with high ceilings. Integrated downdraft ventilation recirculates vented air and includes front ducting as standard, with optional side and rear ducting.

Cooking functions and control

Four induction zones include simple pairing of two zones to create a SmartZone. You can sear, sauté and temper using extremely accurate temperature control from very high to very low heats, with nine heat settings, gentle heat and PowerBoost. Touch and slide, soft-touch electronic controls respond immediately, with an auto cut-off timer for each zone and a minute timer.

Ventilation performance

The integrated ventilation is designed to work effectively and unobtrusively in busy homes by recirculating vented air. Nine fan speeds plus a boost function quickly remove steam and cooking odours. A brushless motor delivers air flow from 192 m³/hr minimum up to 660 m³/hr on boost, with noise levels from 38 dBA minimum to 70 dBA on boost.

Safety and efficiency

Induction heating starts only once a pot or pan is placed on the surface and stops as soon as it is removed. The hob includes a pan detection system, surface hot indicators, safety time out and a keylock. Because only the cookware is heated, less heat is wasted, making induction cooking more energy-efficient than electric or gas hobs.

Cleaning and maintenance

The single glass cooking surface has a flat, easy clean design that can be simply wiped. A flush ventilation grille allows pots to slide effortlessly across the hob. The grease filter tray is designed for simple removal and is dishwasher safe, while odours are managed by a 3x ceramic odour filter. Replacement recirculation filters and ducting accessories are available separately.

Frequently Asked Questions

Does this hob require an overhead extractor?

No. This appliance has integrated ventilation that works by recirculating vented air, so there is no need for bulky overhead ventilation. It can be placed anywhere, including in kitchen islands.

How many cooking zones does the hob have?

The hob has four induction cooking zones. Two zones can be simply paired to create a SmartZone, providing a larger cooking area when required.

How is the ventilation performance controlled?

Ventilation is controlled through nine fan speeds plus a boost function. This allows you to select the ideal extraction rate for your cooking, with up to 660 m³/hr air flow on boost.

Is the hob easy to clean?

Yes. It features a flat, easy clean glass surface and a flush ventilation grille, so spills can be wiped away. The grease filter tray is designed for simple removal and is dishwasher safe, and an odour filter with 3x ceramic elements is included.

What safety features are included?

Safety features include the inherent safety of induction, pan detection, surface hot indicators, a safety time out and a keylock. Induction only heats when cookware is present and stops when it is removed.

What is the energy rating of this hob?

The hob has an energy rating of A+.

CID834RDTB4

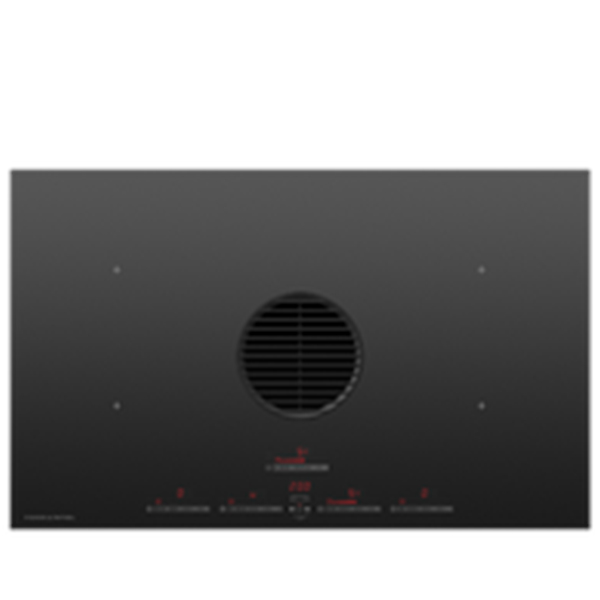

Fisher & Paykel Series 9 CID834RDTB4 Venting Induction Hob
