The Series 9 Contemporary Tall Single DishDrawer™ Dishwasher is a built-under model designed to be installed flush under your benchtop with a recessed handle and tactile matte black glass finish. Created with extra height for taller dishes and flexible internal shelving, it fits six place settings and round plates up to 310 mm. With six wash programmes, Quick, Sanitise and Extra Dry options, quiet 43 dBA performance and Wi-Fi control via the SmartHQ™ app, it supports easy loading with minimal bending.

Key Features

Contemporary tall Single DishDrawer™ design created with extra height for large and taller dishes, designed to be placed anywhere in your kitchen.
Built-under, seamless installation – designed to be installed flush under your benchtop with a recessed handle for a seamless kitchen finish.
Matches Contemporary black glass family with a tactile matte black glass finish that pairs with other Contemporary style appliances.
Designed for real life use – DishDrawer™ Dishwashers can be distributed throughout the kitchen, positioned at bench height for ease of loading and minimal bending.
Flexible loading capacity – fits six place settings, accommodates round plates up to 310 mm, with adjustable height and foldable cupracks, fold-down and pitch-adjustable tines.
Six wash programmes including Delicate, Eco, Fast, Heavy, Medium and Rinse to suit different dishwashing needs.
Quick, Sanitise and Extra Dry modifiers – Quick wash for faster cycles, Sanitise kills 99.9% of bacteria in the final rinse* and Extra Dry is ideal for plastic dishes.
Quiet performer – runs at 43 dBA with intelligent technology and simple mechanics for quiet operation and excellent wash performance.
Wi-Fi enabled Smart appliance that works with the SmartHQ™ app for remote control and notifications.
Energy and water conscious with energy rating F, energy usage of 61 kWh/100 cycles, in-use energy carbon emissions estimate of 11.8 kgCO2e/100 cycles and 7.9 L water usage per wash cycle.
Advanced drying and water care with fan-assisted drying, built-in water softener and flood protection.
SmartDrive™ BLDC motor technology featuring a BLDC motor, SmartDrive™ technology and flow-through detergent dispenser.
Convenient controls and safety including internal wash selector, delay start up to 12 hours, keylock, knock to pause, rinse aid indicator light and end-of-cycle beeps.
Included accessories – cutlery basket, knife clip and multipurpose clip.
*Certified to NSF/ANSI Standard 184.

Technical Specifications

Model	DD60ST4HZB9
Product series	Series 9 \| Contemporary
Product type	Tall Single DishDrawer™ Dishwasher, built-under
Finish	Tactile matte black glass with recessed handle
Height	454 mm
Width	599 mm
Depth	573 mm
Place settings	6
Maximum plate diameter	Accommodates round plates up to 310 mm
Racking features	Adjustable height, foldable cupracks; fold down tines; pitch adjustable tines
Wash programmes	6 – Delicate, Eco, Fast, Heavy, Medium, Rinse
Wash modifiers	3 – Extra Dry, Quick, Sanitise
Energy rating	F
Energy usage	61 kWh/100 cycles
In-use energy carbon emissions estimate	11.8 kgCO2e/100 cycles
Water usage	7.9 L per wash cycle
Noise emissions	43 dBA
Motor type	BLDC with SmartDrive™ technology
Drying system	Fan assisted drying
Water softener	Built-in water softener
Flood protection	Flood protection included
Detergent system	Flow through detergent dispenser
Control features	End of cycle beeps; energy saving delay start up to 12 hours; internal wash selector; keylock; knock to pause; rinse aid indicator light
Smart connectivity	Smart appliance; Wi-Fi enabled; works with SmartHQ™ app
Power supply	Supply voltage 220 – 240 V; supply frequency 50 Hz; amperage 5 A
Water connection	Water pressure 100 kPa – 1000 kPa; water supply 3/4' BSP (20 mm) Connector Water Inlet Hose
Accessories included	Cutlery basket; knife clip and multipurpose clip
SKU	82899

Additional Details and Usage

Installation and design

This tall Single DishDrawer™ Dishwasher is designed to be installed under your benchtop, sitting flush for a seamless look. It is intended to match the Contemporary style family of appliances, particularly those in black glass, and can be positioned at bench height to reduce bending when loading and unloading.

Loading and flexibility

The drawer is designed to fit six place settings and to be as easy to open and close as a kitchen drawer. Foldable racking, fold-down tines and pitch-adjustable tines allow taller dishes up to 310 mm and a variety of items to be accommodated. Adjustable cupracks help organise cups and smaller pieces.

Programmes and modifiers

Six wash programmes are available: Delicate, Eco, Fast, Heavy, Medium and Rinse. Three wash modifiers let you tailor performance: Quick for faster washes while maintaining performance, Sanitise to provide extra protection by killing 99.9% of bacteria in the final rinse (certified to NSF/ANSI Standard 184), and Extra Dry, which is suited to plastic dishes.

Operation and controls

Operation is supported by internal wash selection, end-of-cycle beeps and an energy-saving delay start option of up to 12 hours. A keylock helps prevent unintended use, while knock to pause allows you to pause the cycle. The rinse aid indicator light makes it easy to see when rinse aid needs refilling.

Performance and quietness

Running at 43 dBA, this DishDrawer™ Dishwasher is described as a quiet performer. Its combination of intelligent technology and simple mechanics is designed to deliver reliability and excellent wash performance. Fan-assisted drying, a built-in water softener and flood protection further support cleaning results and appliance care.

Smart connectivity and energy information

As a smart appliance, it is Wi-Fi enabled and works with the SmartHQ™ app for remote control and notifications. An In-use Energy Carbon Emissions Estimate of 11.8 kgCO2e/100 cycles is provided to help compare products, based on energy label consumption data and regional emissions factors.

Frequently Asked Questions

How many place settings does this DishDrawer™ hold?

It is designed to fit six place settings, with flexible racking and adjustable tines to accommodate a range of dishes and glassware.

What is the maximum plate size it can wash?

The tall DishDrawer™ design accommodates round plates up to 310 mm in diameter.

Which wash programmes are available?

There are six wash programmes: Delicate, Eco, Fast, Heavy, Medium and Rinse. Three additional modifiers – Quick, Sanitise and Extra Dry – let you fine-tune each cycle.

How quiet is the Series 9 Single DishDrawer™ in use?

It has a noise emissions rating of 43 dBA and is described as running at a very low decibel rating, doing its job without making a fuss.

Is this dishwasher Wi-Fi enabled?

Yes. It is a smart appliance that is Wi-Fi enabled and works with the SmartHQ™ app, allowing remote control and notifications.

What accessories are included with the product?

A cutlery basket, knife clip and multipurpose clip are included as accessories.

DD60ST4HZB9

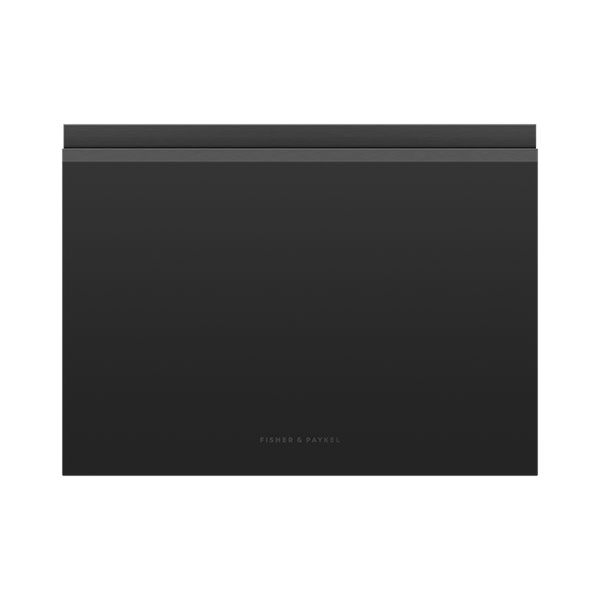

Fisher & Paykel Series 9 DD60ST4HZB9 Single Dishdrawer
