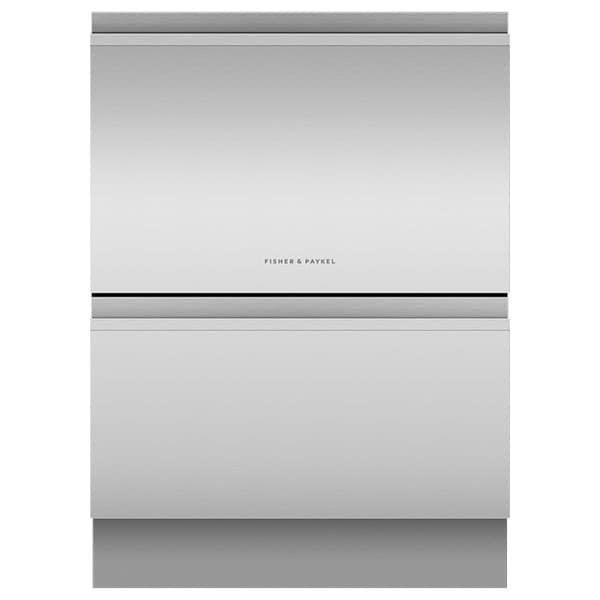

The Series 9 Contemporary Double DishDrawer™ Dishwasher is designed to be installed under your benchtop with recessed handles for a streamlined, seamless fit. Each drawer holds a true half load with room for full-size dinner plates, and can operate independently with six wash programmes plus Quick, Sanitise and Extra Dry modifiers. Flexible racking and quiet performance make it a convenient option for everyday dishwashing needs.

Key Features

Double DishDrawer™ design – wash one drawer while you load the other, each with room for full-size dinner plates.
Seamless built-under installation – installed flush under your benchtop with recessed handles and option of a custom kickstrip.
Six wash programmes – Delicate, Eco, Fast, Heavy, Medium and Rinse to suit different load types.
Quick, Sanitise and Extra Dry modifiers – faster wash, extra protection killing 99.9% of bacteria* and improved drying for plastic dishes.
Flexible racking system – adjustable height, foldable cup racks, fold-down and pitch adjustable tines for varied dishes.
True half load in each drawer – small, fast washing that won’t waste water, with drawers operating independently.
Independent wash capability – run two different wash cycles simultaneously for different types of dishes.
Quiet performer – very low noise with 43 dBA on the standard cycle in the top drawer.
Wi-Fi enabled smart appliance – works with the SmartHQ™ app for remote control and notifications.
Ease of use – drawers open and close like kitchen drawers and can be positioned at bench height to minimise bending.
Knock to pause function – a knock on the front panel pauses the dishwasher, restart using the start button.
Fan assisted drying – enhances drying performance after the wash cycle.
Built-in water softener – helps manage water quality for effective washing.
Flood protection – integrated protection feature for added peace of mind.
SmartDrive™ and BLDC motor technology – simple mechanics and intelligent technology for excellent wash performance.
Includes accessories – cutlery basket, knife clip and multipurpose clip, and kickstrip.
*Certified to NSF/ANSI Standard 184.

Technical Specifications

Product series	Series 9 \| Contemporary Double DishDrawer™ Dishwasher
SKU	82894
Installation type	Built-under, installed flush under benchtop with recessed handles; option of custom kickstrip
Height	820 – 880 mm
Width	599 mm
Depth	573 mm
Place settings (total)	12 place settings
Place settings per drawer	6 place settings per drawer
Maximum plate size	Accommodates round plates up to 280mm
Energy rating	E
Energy usage	54kWh/100 cycles per drawer
In-use energy carbon emissions estimate	10.5kgCO2e/100 cycles per drawer
Water usage	7.8L per wash cycle per drawer
Noise level (top drawer, standard cycle)	43 dBA
Wash programmes	6 (Delicate, Eco, Fast, Heavy, Medium, Rinse)
Wash modifiers	3 (Extra Dry, Quick, Sanitise)
Smart connectivity	Wi-Fi enabled; works with SmartHQ™ app
Motor type	BLDC with SmartDrive™ technology
Power supply	220 – 240V, 50Hz
Amperage	10A (rated current 8.5A)
Water connection	Water pressure 100kPa – 1000kPa; 3/4' BSP (20mm) Connector Water Inlet Hose
Accessories included	Cutlery basket; Knife clip and multipurpose clip; Kickstrip
Country-specific details	Not stated in source

Programmes, Functions and Usage

Wash programmes

This dishwasher offers six wash programmes: Delicate, Eco, Fast, Heavy, Medium and Rinse. These allow you to wash everything from fine glass and crystal to heavily soiled pots and pans.

Wash modifiers

Quick wash modifier – delivers a faster wash while maintaining performance.
Sanitise option – provides extra protection, killing 99.9% of bacteria in the final rinse (certified to NSF/ANSI Standard 184).
Extra Dry setting – ideal for improving the drying of plastic dishes.

Controls and convenience

Touch-sensitive control panel located inside the model for an uninterrupted exterior.
Energy saving delay start option of up to 12 hours.
End of cycle beeps for clear notification when the programme is finished.
Internal wash selector for programme choice.
Keylock and rinse aid indicator light.
Knock to pause function on the front panel, restart using the start button.

Loading and racking

Flexible racking allows internal shelves to be customised to suit different dishes.
Adjustable height, foldable cup racks and fold-down tines.
Pitch adjustable tines for secure loading of varied items.
Each drawer holds a true half load, enabling smaller, efficient washes.

Performance and safety

Fan assisted drying and quiet operation for low-noise performance.
Built-in water softener to support washing performance.
Flood protection for added safety.

Carbon emissions information

The In-use Energy Carbon Emissions Estimate indicates carbon emissions from the product’s in-use energy, calculated using market-specific energy label consumption data multiplied by the carbon emissions factor for energy in the relevant country or region. It is designed to assist customers in making informed purchasing decisions when comparing different Fisher & Paykel products.

Frequently Asked Questions

How many place settings can this dishwasher hold?

This Double DishDrawer™ Dishwasher provides 12 place settings in total, with 6 place settings per drawer. It accommodates round plates up to 280mm in diameter.

Can I run different wash cycles in each drawer at the same time?

Yes. Both drawers operate independently, so you can select different wash programmes and run two wash cycles simultaneously for varying loads.

What does the Sanitise option do?

The Sanitise option provides extra protection by killing 99.9% of bacteria in the final rinse. This function is certified to NSF/ANSI Standard 184.

Is this dishwasher quiet during operation?

Yes. It runs at a very low decibel rating, with 43 dBA on the standard cycle in the top drawer, so it performs its wash cycles without making a fuss.

Does it offer smart connectivity?

This dishwasher is Wi-Fi enabled and works with the SmartHQ™ app, allowing remote control and notifications.

What is the water and energy usage per drawer?

Each drawer uses 7.8L of water per wash cycle and has an energy usage of 54kWh per 100 cycles. The in-use energy carbon emissions estimate is 10.5kgCO2e per 100 cycles per drawer.

DD60D4HNX9

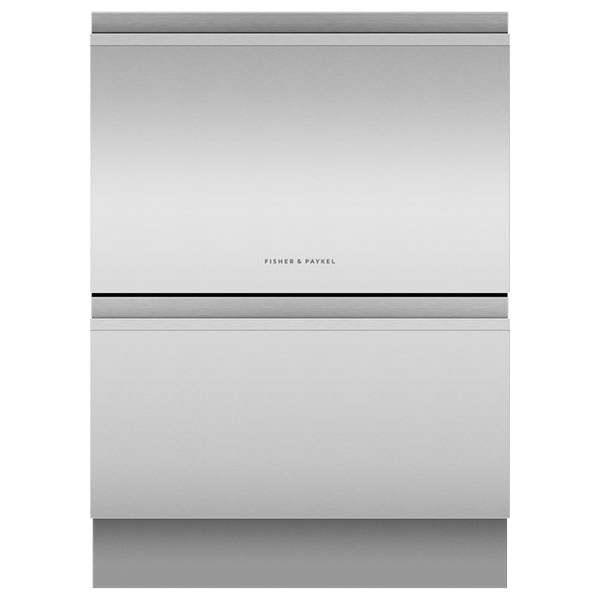

Fisher & Paykel Series 9 DD60D4HNX9 Double Dishdrawer
