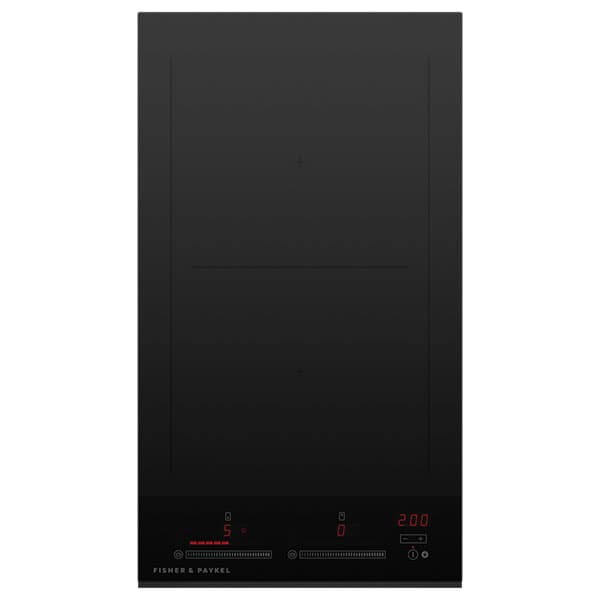

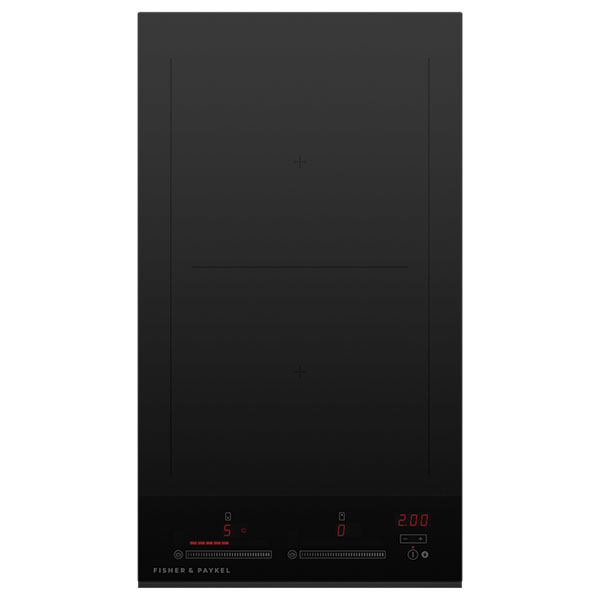

This 30cm Series 7 2 Zone induction hob with SmartZone offers immediate heat response and accurate temperature control in a compact design. Ideal for those wanting a large flexible cook zone or to match with a two-burner gas hob, it features PowerBoost for very high heat, GentleHeat for very low heat, and Touch&Slide controls. The subtle black glass with durable matte black detailing is designed to complement Minimal style Series 7 ovens.

Key Features

SmartZone flexible cooking area – links two cooking zones and controls them as one, giving flexibility for large pans, griddles and bigger food items such as a whole fish.
Immediate heat response – Touch&Slide controls react immediately when you adjust the temperature, helping you go from a boil to a simmer in seconds.
PowerBoost high heat – activates a very high heat, bringing liquid to the boil in less than a minute and delivering powerful performance when needed.
GentleHeat low temperature control – provides very low heat fast, ideal for specialised tasks such as melting chocolate.
Cool-to-touch hob surface – the cooktop remains cool to touch until a pot or pan is placed on the surface, heating only the cookware.
Safer induction operation – heating starts only once cookware is detected and stops as soon as it is removed, supported by pan detection and safety time out.
Energy-efficient induction technology – less heat is wasted because only the cookware is heated, making induction cooking more energy-efficient than electric or gas hobs.
Complementary Minimal design – subtle black glass and durable matte black detailing are designed to pair with Minimal style Series 7 ovens for a cohesive kitchen look.
Easy-clean ceramic glass surface – the surface around cookware stays cool, helping prevent baked-on spills so the hob needs just a quick wipe after use.
Touch&Slide controls – soft-touch electronic controls allow easy control of each cook zone, including pairing zones into SmartZone.
Integrated timers – features an auto cut-off timer for each zone and a minute timer to support great cooking results.
2 cooking zones – two induction zones that can be bridged, giving flexibility in a compact 30cm width.
Durable anodised detailing – provides durability while maintaining the hob’s good looks.
Optional joiner kit accessory – joiner kit Part 534731 is available (sold separately) and is required to join two cooktops.

Technical Specifications

Product name	30cm Series 7 2 Zone Induction Hob, SmartZone
Series	Series 7 \| Minimal
Model reference	CI302DTB4
SKU	81975
Height	54 mm
Width	300 mm
Depth	530 mm
Number of zones	2
Left front zone rating	2100W (3700W with PowerBoost set)
Left rear zone rating	2100W (3700W with PowerBoost set)
Heat settings	9
Cooking technology	Induction cooking technology with SmartZone and zone bridging
PowerBoost	Yes – brings liquid to boil in less than a minute
GentleHeat	Gentle heat setting for very low heat
Controls	Soft-touch electronic controls; Touch and slide controls
Timers	Auto cut-off timer for each zone; minute timer
Cleaning surface	Flat easy clean glass surface; ceramic hob surface with anodised detailing
Safety features	Individual hot surface indicators; surface hot indicators; pan detection system; keylock; safety time out; spillage auto off
Supply voltage	220 – 240 V
Accessory (sold separately)	Joiner kit Part 534731 (required to join two cooktops)

Additional Details and Usage

Complementary kitchen design

The subtle black glass and durable matte black detailing are designed to pair with Minimal style Series 7 ovens. With premium styling and detailing, this hob is intended to blend seamlessly with other appliances for a cohesive, considered kitchen design.

Cooking performance and control

PowerBoost and GentleHeat provide either very high or very low heat, fast, making them suitable for specialised cooking tasks such as searing meat and melting chocolate. Touch&Slide controls allow you to easily control each cook zone, including pairing cook zones to create a large SmartZone, and react immediately when you adjust temperature.

Safety and efficiency

Induction hobs only start heating your pot or pan once it is placed on the ceramic surface and stop as soon as it is removed. The pan detection system, safety time out, spillage auto off and hot surface indicators support safer operation. Less heat is wasted because only the cookware is heated, making induction cooking more energy-efficient than electric or gas hobs.

Cleaning and maintenance

The surface around your cookware stays cool when you cook, helping prevent baked-on spills and making cleaning up easier. The flat easy clean glass and ceramic hob surface with anodised detailing just need a quick wipe after use to maintain their good looks.

Installation and configuration

This 30cm hob can be matched with a two-burner gas hob. A joiner kit, Part 534731, is required to join two cooktops and is available as an accessory sold separately. Supply voltage is 220 – 240 V.

Frequently Asked Questions

How many cooking zones does this hob have?

The hob has 2 induction cooking zones. These can be linked using SmartZone and zone bridging so they can be controlled as one larger cooking area.

What are the dimensions of the hob?

The hob has a height of 54 mm, a width of 300 mm and a depth of 530 mm.

How powerful are the cooking zones?

The left front and left rear zones are each rated at 2100W, increasing to 3700W when PowerBoost is set.

How easy is the hob to clean?

The hob has a flat easy clean glass and ceramic surface. Because the surface around cookware stays cool, spills are less likely to bake on and can be removed with a quick wipe.

What safety features does this hob include?

Safety features include individual hot surface indicators, surface hot indicators, a pan detection system, keylock, safety time out and spillage auto off. Induction heating starts only when a suitable pot or pan is on the surface and stops when it is removed.

Can this hob be combined with another cooktop?

Yes, it can be matched with a two-burner gas hob. A joiner kit, Part 534731, is required to join two cooktops and is sold separately.
