The BORA PUXA2 and PUXA2R are compact cooktop extractor systems combining a surface induction cooktop with an integrated exhaust-air extractor. Designed for kitchens with a minimum unit width of 90 cm, they feature four very large induction cooking zones, an effective cooktop extractor with stainless steel grease filter and intuitive tricolour sControl+ touch controls. Connectivity, BORA Assist and use with the BORA JOY app support simpler cooking experiences and an extended range of functions.

Key Features

Compact cooktop extractor system – combined surface induction cooktop and integrated cooktop extractor operating with exhaust air.
High-gloss or matt glass ceramic surface – PUXA2 with high-gloss glass ceramic and PUXA2R with X Pure Rough matt glass ceramic.
Four very large induction cooking zones – oversized surface induction zones measuring 230 × 230 mm front and rear.
Effective cooktop extractor – includes a stainless steel grease filter and integrated grease drip tray.
Intuitive tricolour sControl+ operating panel – touch controls with power levels 1–9 and power setting P.
Connectivity and BORA Assist – assistance functions and a wider range of functions with the BORA JOY app.
Automatic extractor management – automatic extractor function with automatic after-run.
Flexible cooking options – pan size recognition, variable heat retention function and bridging function.
Convenient timers and pause – cooking zone timer, short-time timer and pause function.
Comprehensive safety features – child lock, control lock, cleaning lock, residual heat indicator, safety shut-down and overheating protection.
BORA Ecotube compatibility – exhaust air system designed with BORA Ecotube duct connection.
Flexible installation options – suitable for flush installation or surface mounting in kitchen units from 90 cm width.

Technical Specifications

Product type	Compact cooktop extractor system – combined cooktop and extractor system
Models	PUXA2 (high-gloss glass ceramic), PUXA2R (X Pure Rough matt glass ceramic)
System type	Exhaust air system with BORA Ecotube duct connection
Minimum kitchen unit width	90 cm
Multiphase supply voltage	380–415 V 2N/3N
Single-phase supply voltage	220–240 V
Frequency	50–60 Hz
Maximum power consumption	7600 W (4400 W / 3600 W)
3-phase fuse protection / power supply	3 × 16 A
2-phase fuse protection / power supply	2 × 16 A
1-phase fuse protection / power supply	1 × 32 A (1 × 20 A / 1 × 16 A)

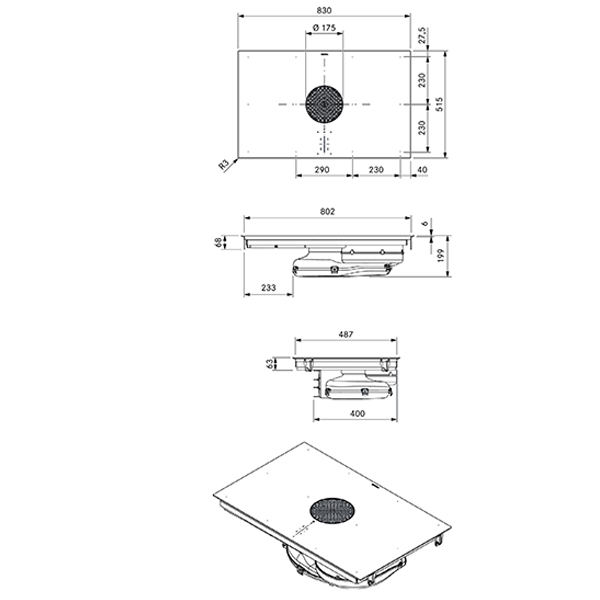

Dimensions (width × depth × height)	830 × 515 × 199 mm
Weight (incl. accessories / packaging)	23.8 kg
Weight (net)	16.9 kg
Surface material	Glass ceramic
Cooking zones	4 oversized surface induction cooking zones
Power levels	1–9, P
Size of front cooking zones	230 × 230 mm
Size of rear cooking zones	230 × 230 mm
Front cooking zone output	2100 W
Rear cooking zone output	2100 W
Output of front cooking zones on power setting	3000 W
Output of rear cooking zones on power setting	3000 W
Duct connection	BORA Ecotube
Guaranteed software update availability	5 years from product discontinuation date
Energy efficiency class	Not stated in source

Functions and Usage Details

Cooking and assistance functions

BORA Assist function Fry.
Power setting for boosted performance.
Pan size recognition for efficient heat distribution.
Variable heat retention function.
Bridging function for flexible use of cooking zones.
Cooking zone timer and short-time timer.
Pause function.

Extractor functions

Automatic extractor function.
Automatic after-run for continued extraction.
Integrated grease drip tray.
Stainless steel grease filter.

Safety features

Child lock.
Control lock.
Cleaning lock.
Residual heat indicator.
Safety shut-down.
Overheating protection.

Scope of delivery

Surface induction glass ceramic cooktop with integrated cooktop extractor – exhaust air PUXA2/PUXA2R, air inlet nozzle PUXED2, stainless steel grease filter, operating and installation instructions, installation accessories.

Compatible accessories

Stainless steel grease filter PUEF.
Air inlet nozzles PUXED2 and PUED2.
Sealing tape UDB25.
Cooktop frame KFR830AB.
Side frame USL515/USL515AB.
Grill pan for surface induction KWGPFI.

Installation and planning notes

The mains supply cable is to be provided on site.
Front power socket required.
Flush installation or surface mounting possible.
Sufficient ventilation below the cooktop must be ensured.
Drawers or shelves in the base unit must be removable for maintenance and cleaning.
Suitable for use with all BORA sockets.
Not compatible with BORA universal fans.
When installation is complete, the appliance is to be sealed in using heat-resistant silicone sealant.
Safety and warning information is provided in the operating and installation instructions.

Frequently Asked Questions

What is the difference between PUXA2 and PUXA2R?

PUXA2 has a high-gloss glass ceramic surface, while PUXA2R has an X Pure Rough matt glass ceramic surface. Both are surface induction cooktops with integrated cooktop extractor for exhaust air.

How wide does my kitchen unit need to be?

The minimum installation dimensions require a kitchen unit with a minimum width of 90 cm.

How many cooking zones does the appliance have and how large are they?

The appliance has four very large surface induction cooking zones. Both the front and rear cooking zones measure 230 × 230 mm.

What safety features are included?

Safety features include a child lock, control lock, cleaning lock, residual heat indicator, safety shut-down and overheating protection.

Can this cooktop be installed flush with the worktop?

Yes, it can be installed either flush or as a surface-mounted unit, provided sufficient ventilation below the cooktop is ensured and it is sealed in with heat-resistant silicone sealant after installation.

Which duct system is the extractor designed for?

The extractor is an exhaust air system with a BORA Ecotube duct connection and is not compatible with BORA universal fans.
