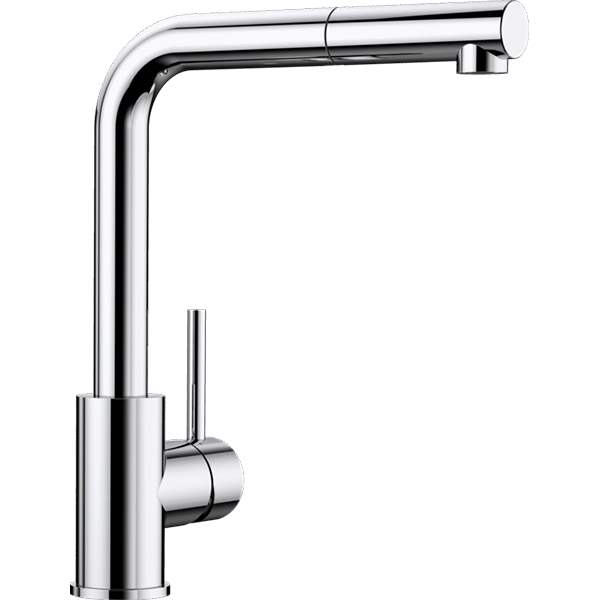

The BLANCO MILA-S is a clean, classic single-lever monobloc mixer tap with a pull-out spray hose, designed for compact sinks and flexible kitchen layouts. Its 360° swivelling spout provides a large working radius, making it well suited to positioning on kitchen islands. Finished in galvanic chrome, this tap combines practical extendable reach around the sink with straightforward planning and installation requirements for balanced high pressure systems.

Key Features

Clean, classic single-lever design for a simple, contemporary look at the sink.
Suitable for compact sinks to maximise functionality in smaller kitchen spaces.
Pull-out, extendable tap head for extra reach around the sink area.
360° swivelling spout provides a large working radius, ideal for flexible use.
Great for positioning on kitchen islands thanks to the full 360° swivel range.
Single lever monobloc mixer tap with pull-out spray hose for mixed water control.
Galvanic chrome finish with available colour specified as chrome.
Requires balanced high pressure supply only with a minimum 1.0 bar.
Ceramic disc cartridge specified for the mixer mechanism.
Flexible connector pipes with ⅜'' connections for installation.
Optional metal stabilising bracket can be fitted (item number 513383).

Technical Specifications

Product name	MILA-S
Item number	519810
Tap type	Single lever monobloc mixer tap with pull out spray hose
Finish / colour	Galvanic chrome; available colours: chrome
Mounting hole diameter	Ø35 mm tap hole required
Connection type	⅜'' flexible connector pipes
Flexible hose length	500 mm long (scope of supply)
Water pressure requirement	Balanced high pressure supply only, minimum 1.0 bar
Cartridge type	Ceramic disc cartridge
Spout swivel range	360°
Overall height	296 mm
Spout height	263 mm
Spout projection	208 mm
Base diameter	Ø52 mm
Lever reach (side)	110 mm (side view dimension)
Other dimensional details	74 mm and 67 mm dimensions shown in side and front views; max. 55 mm mounting surface thickness
Stabilising bracket	Fit metal stabilising bracket if required, item number 513383

Installation and Planning Details

This single lever monobloc mixer tap requires an Ø35 mm tap hole for installation. It is supplied with ⅜'' flexible connector pipes, 500 mm long, and is designed for use with a balanced high pressure water supply only, with a minimum pressure of 1.0 bar. A ceramic disc cartridge is used within the tap body.

For additional stability on the sink or worktop, a metal stabilising bracket can be fitted where required (item number 513383). The spout swivels through 360°, offering a wide working area that is suitable for compact sinks and for positioning the tap on kitchen islands.

Frequently Asked Questions

What type of water pressure does the MILA-S tap require?

The tap requires a balanced high pressure supply only, with a minimum pressure of 1.0 bar.

Is the spout suitable for use on a kitchen island?

Yes. The spout swivels 360° to provide a large working radius, which is described as great for positioning on kitchen islands.

Does the MILA-S tap have a pull-out function?

Yes. It features a pull-out, extendable tap head with a pull out spray hose, giving extra reach around the sink.

What mounting hole size is needed for installation?

An Ø35 mm tap hole is required for installing the MILA-S mixer tap.

What colour options are available?

The tap is described with a galvanic chrome finish, and the available colour is stated as chrome.
