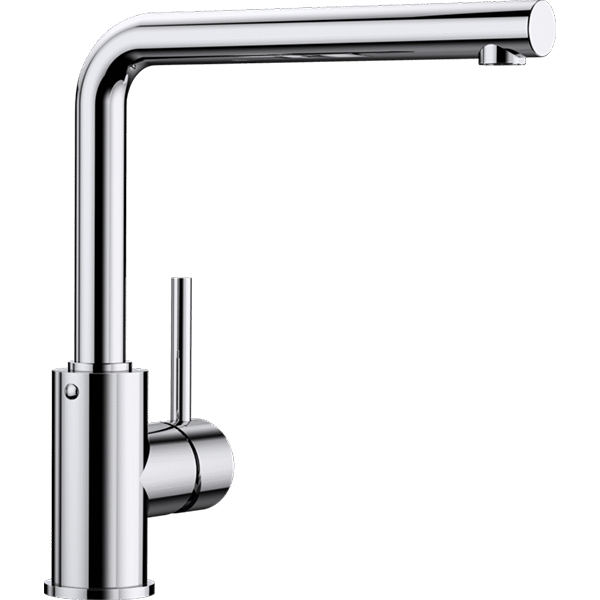

The BLANCO MILA item no. 526142 is a clean, classic single-lever kitchen tap in galvanic chrome, suitable for compact sinks and kitchen islands. Its spout swivels 360° to provide a large working radius, making it practical for flexible sink layouts. With an Eco flow regulated at 6 litres and a design that fits a ø 35 mm tap hole, it is tailored for balanced high pressure systems with a minimum 1.0 bar.

Key Features

Clean, classic single-lever design for a simple, streamlined look at the sink.
Suitable for compact sinks, helping to maximise space in smaller kitchens.
360° swivel spout provides a large working radius, ideal for flexible use.
Great for positioning on kitchen islands thanks to the fully swivelling spout.
6 litre Eco flow regulated tap included in the scope of supply.
Designed for ø 35 mm tap hole, matching the required installation opening.
Flexible connector pipes, 700 mm long with 1⁄2'' nut supplied for connection.
Requires balanced high pressure supply only with a minimum 1.0 bar.
Optional metal stabilising bracket can be fitted, item number 513383.
Galvanic chrome finish with chrome listed as the available colour.

Technical Specifications

Product name	MILA
Item number	526142
Tap type	Single-lever kitchen tap
Finish	Galvanic chrome
Available colours	Chrome
Swivel range	360°
Flow regulation	6 litre Eco flow regulated tap
Required tap hole diameter	ø 35 mm
Connector pipes	Flexible connector pipes, 700 mm long and 1⁄2'' nut
Water pressure requirement	Balanced high pressure supply only, minimum 1.0 bar
Optional stabilising bracket	Metal stabilising bracket, item number 513383 (fit if required)
Overall height	270 mm
Height to spout outlet	241 mm
Spout projection (approx.)	210 mm (with 81 mm indicated to control area)
Base diameter	ø 52 mm
Maximum worktop thickness (shown)	max. 30 mm
Minimum worktop thickness to underside of base	5 mm (dimension shown)
Minimum tap hole diameter	ø min. 35 mm (as indicated in side view)

Installation and Usage Details

Designed to be installed in a ø 35 mm tap hole with the side lever accessible as shown in the side view.
Flexible connector pipes (700 mm long, 1⁄2'' nut) are supplied for connection to a balanced high pressure system with a minimum 1.0 bar.
A metal stabilising bracket, item number 513383, can be fitted if required to provide additional stability.
The 360° swivel range allows the spout to rotate fully, supporting use with compact sinks and kitchen islands.
