The BLANCO LINUS 526683 is a kitchen tap with a proven, minimalistic and contemporary design, offering stability without bulkiness. It features a 360° swivelling spout for a large working radius, making it well suited to kitchen islands. Available in different metal surfaces, including durable PVD finishes that are less sensitive to scratches, wear and fingerprint marks, it is designed for high-pressure systems requiring a minimum of 1.0 bar.

Key Features

Minimalistic, contemporary design offering a proven style with stability without bulkiness.
Multiple metal surfaces available to create a harmonious look with matching accessories.
PVD steel finish is less sensitive to scratches and wear and tear compared to chrome, and less likely to show fingerprint marks.
360° swivel spout provides a large working radius, ideal for positioning on kitchen islands.
Available colours include PVD steel, satin gold, satin dark steel and satin platinum.
High-pressure tap requiring a balanced supply with a minimum of 1.0 bar (approx. 10 metre head).
Flexible connector pipes 700 mm long with ⅜'' nut for installation (connectors required but not supplied).
Tap stabilising bracket heavy duty metal bracket can be fitted when required (Item No. 513383).
Compact base with Ø35 mm tap hole requirement and 45 mm base size for neat installation.

Technical Specifications

Product name	LINUS
Item number	526683
Tap type	High pressure supply only
Minimum pressure	1.0 bar (approx. 10 metre head)
Swivel range	360°
Overall height	282
Reach	220
Base size	45
Tap hole requirement	Ø35 mm
Connector type	⅜'' BSP connectors required (not supplied)
Connector pipes	Flexible pipes, 700 mm long with ⅜'' nut
Available colours	PVD steel, satin gold, satin dark steel, satin platinum

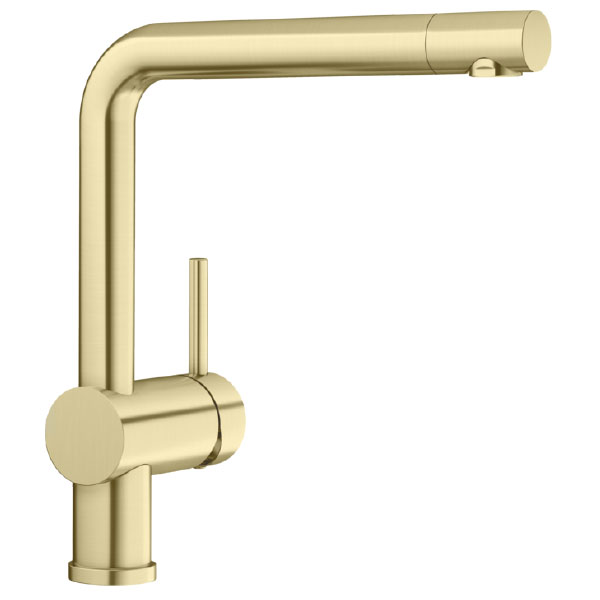

Example finish shown	PVD satin gold
Stabilising bracket	Heavy duty metal tap stabilising bracket, fit when required (Item No. 513383)

Installation and Additional Details

This tap is designed for balanced high-pressure systems only and requires a minimum of 1.0 bar water pressure (approximately 10 metre head). ⅜'' BSP connectors are required and are not supplied as standard.

A Ø35 mm tap hole is required for installation, with a 45 mm base providing a stable mounting area. Flexible connector pipes, 700 mm long with ⅜'' nut, are included in the scope of supply.

A heavy duty metal tap stabilising bracket (Item No. 513383) can be fitted where additional support is needed. The 360° swivelling spout allows a large working radius, supporting flexible positioning such as on kitchen islands.

Frequently Asked Questions

What water pressure does the BLANCO LINUS 526683 require?

It requires a balanced high-pressure supply only, with a minimum of 1.0 bar, which is approximately a 10 metre head.

What tap hole size is needed for installation?

A Ø35 mm tap hole is required for installing the BLANCO LINUS, and the tap has a 45 mm base.

Does the spout swivel and what is its range?

Yes, the spout swivels through 360°, providing a large working radius that is particularly useful for kitchen islands.

Which finishes and colours are available?

Available colours are PVD steel, satin gold, satin dark steel and satin platinum. An example finish shown is PVD satin gold.

What is included in the scope of supply?

The scope of supply includes flexible connector pipes, 700 mm long with ⅜'' nut. A heavy duty metal tap stabilising bracket (Item No. 513383) should be fitted when required, and ⅜'' BSP connectors are required but not supplied.

How does the PVD steel finish perform compared to chrome?

The PVD steel finish is less sensitive to scratches and wear and tear compared to chrome and is less likely to show fingerprint marks.
