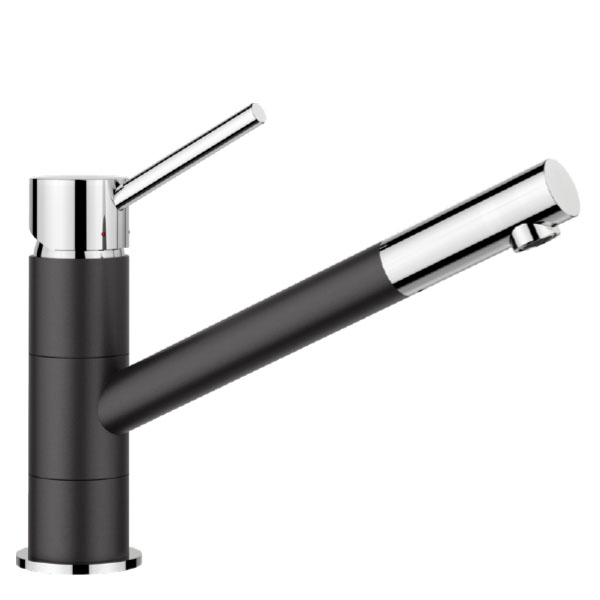

The BLANCO KANO is a single lever monobloc mixer tap featuring clean lines and a rounded design for a prominent look in the kitchen. It is designed for easy operation with a single lever and offers a 360° swivelling spout, providing a large working radius that suits kitchen islands. The tap is available in several Silgranit Look dual finish colour combinations to enable precise colour matching with Silgranit sinks.

Key Features

Clean lines and rounded design give the mixer tap a prominent look in the kitchen.
Easy to operate single lever for simple control of the mixer tap.
360° swivelling spout provides a large working radius, ideal for positioning on kitchen islands.
Silgranit Look dual finish black/chrome with additional colour variants for precise colour matching with Silgranit sinks.
Single lever monobloc mixer tap design for streamlined installation and appearance.
Ceramic disk cartridge included as part of the mixer tap construction.
WRAS approved fitting for the mixer tap.
Flexible connector pipes with ⅜'' nut supplied for secure installation.
Suitable for balanced high pressure supply only with a minimum of 1.0 bar required.
Optional metal stabilising bracket can be fitted if required (item number 513383).

Technical Specifications

Item number	526175
Tap type	Single lever monobloc mixer tap
Tap hole requirement	Ø 35 mm tap hole required
Spout swivel range	Spout swivels 360°
Cartridge type	Ceramic disk cartridge
Approval	WRAS approved fitting
Connector pipes (planning information)	⅜'' flexible connector pipes, 350 mm long for particularly secure installation
Connector pipes (scope of supply)	Flexible connector pipes, 500 mm long and ⅜'' nut
Water supply requirement	Requires balanced high pressure supply only, minimum of 1.0 bar
Optional stabilising bracket (planning)	Fit stabilising bracket if required, item No. 450775
Optional metal stabilising bracket (scope)	Fit metal stabilising bracket if required, item number 513383
Dimensions – total projection	258.5
Dimensions – height	217
Dimensions – spout height	191
Dimensions – base diameter	Ø55
Dimensions – maximum worktop thickness	max. 25
Other detailed measurements	4, 143, 179, 220, Ø44 (as shown in side and top view diagrams)

Colours

Silgranit Look dual finish: black/chrome

Available colours:

black/chrome
anthracite/chrome
volcano grey/chrome
white/chrome
soft white/chrome
coffee/chrome

Additional Details and Planning Information

The mixer tap is a single lever monobloc model requiring an Ø 35 mm tap hole. It incorporates a ceramic disk cartridge and is supplied as a WRAS approved fitting. For installation, ⅜'' flexible connector pipes are included, with specified lengths of 350 mm for particularly secure installation in planning information and 500 mm with ⅜'' nut in the scope of supply.

The tap requires a balanced high pressure supply only, with a minimum of 1.0 bar. A stabilising bracket may be fitted if required, with item numbers 450775 and 513383 referenced for stabilising bracket options. The spout swivels 360° to provide a large working radius, which is suitable for positioning on kitchen islands.
