The CHOICE Icona (item no. 527659) is a versatile tap offering filtered chilled, up to 100° boiling hot and sparkling water, alongside hot and cold regular water. Designed for users seeking convenience, taste and personalisation, it features separate outlets for drinking and regular water, a 180° swivelling spout on a flexible hose, and rotary controls with touch sensor operation. It must be installed with a CHOICE.All water conditioning unit and a balanced high pressure supply.

Key Features

Drinks system redefines convenience, taste and personalisation by providing a multi-function water solution from a single tap.
Delivers filtered chilled, up to 100° boiling hot and sparkling water plus hot and cold regular water for everyday use.
Measurement dial for filtered water volume lets you select the exact amount of filtered water, helping minimise water wastage.
Jet spray option for regular water enables convenient cleaning of fruit and vegetables.
Separate outlets for drinking and regular water ensure there is no mixing between filtered and regular supplies.
Spout swivels 180° on a flexible hose with magnetic dock for greater reach and ease of use around the sink.
Two outlets for mains water and filtered water options provide clear distinction between water types at the tap.
Rotary wheels to select water type and volume, with water flow started via a touch sensor.
Stabilising plate included to increase tap stability when fitted in stainless steel sinks.
Requires CHOICE.All water conditioning unit for correct operation of the drinks system.
Requires balanced high pressure supply with a minimum of 1.0 bar.
Available in multiple PVD satin finishes including satin gold, satin dark steel and satin platinum.

Technical Specifications

Item number	527659
Water types delivered	Filtered chilled, up to 100° boiling hot, sparkling water plus hot and cold regular water
Minimum water pressure	Balanced high pressure supply only, minimum 1.0 bar
Tap hole size required	Ø 35 mm tap hole required
Swivel range	180° swivel spout
Overall height	450 mm
Height to spout outlet	191 mm
Spout reach (front dimension)	174 mm / 211 mm (as shown)
Maximum worktop thickness (clamping)	max. 60 mm
Base width at sink/worktop	48 mm
Control projection (side view)	108 mm / 85 mm

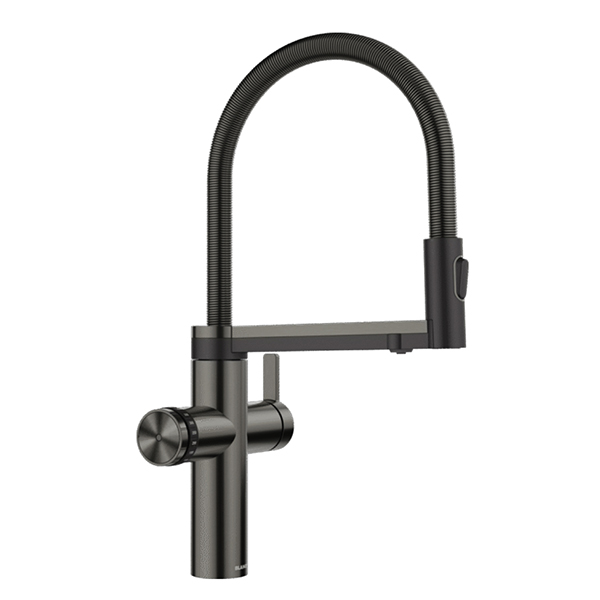

Colour – primary shown	PVD satin dark steel
Available colours	satin gold; satin dark steel; satin platinum
Required accessories	Needs to be installed with CHOICE.All water conditioning unit

Additional Details and Usage

Scope of Supply

Two outlets for mains water and filtered water options.
Rotary wheels to select water type and volume.
Touch sensor to start the water flow.
Ø 35 mm tap hole requirement for installation.
180° swivel spout for flexible positioning.
Stabilising plate to increase stability when fitted in stainless steel sinks.
Requires balanced high pressure supply only, minimum 1.0 bar.

Operation and Functions

Rotary wheels allow selection of water type and precise volume.
Measurement dial supports accurate dispensing of filtered water.
Touch sensor activates the chosen water flow.
Jet spray option is available for regular water for cleaning fruit and vegetables.

Installation Notes

The tap must be installed with a CHOICE.All water conditioning unit. A balanced high pressure supply with a minimum of 1.0 bar is required, and a Ø 35 mm tap hole is necessary. The stabilising plate should be used when fitting the tap in stainless steel sinks to enhance stability.

Frequently Asked Questions

What types of water does the CHOICE Icona provide?

It provides filtered chilled, up to 100° boiling hot and sparkling water, as well as hot and cold regular water.

Does the tap mix drinking and regular water?

No. It has separate outlets for drinking water and regular water, so there is no mixing.

What installation requirements should I be aware of?

It requires a Ø 35 mm tap hole, a balanced high pressure supply with a minimum of 1.0 bar, and must be installed with a CHOICE.All water conditioning unit.

How do I control the water type and volume?

Rotary wheels are used to select the water type and volume, including a measurement dial for filtered water. The touch sensor is used to start the water flow.

Is there a feature for rinsing fruit and vegetables?

Yes. The tap includes a jet spray option for regular water specifically for cleaning fruit and vegetables.

What colours are available?

It is available in satin gold, satin dark steel and satin platinum finishes. The illustrated version is PVD satin dark steel.
