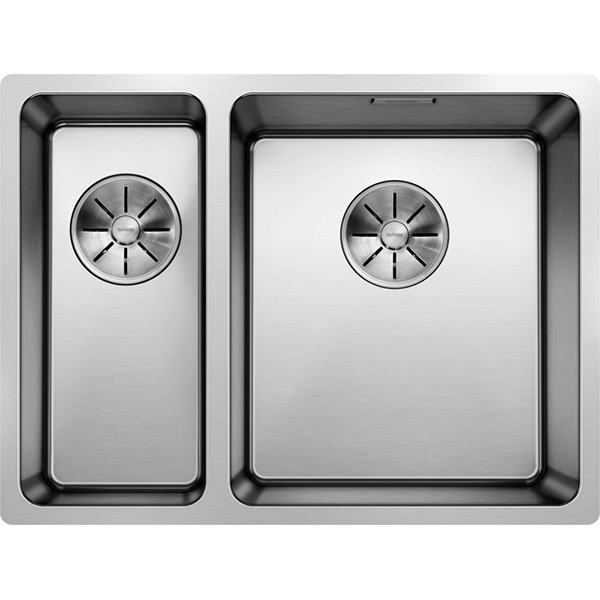

The ANDANO 340/180-U is a stainless steel sink with a subtle, straight-lined design that adds an elegant touch to modern kitchens. It offers a spacious main sink, ideal for soaking baking trays, alongside a smaller bowl that supports easy food preparation. An elegant InFino strainer provides swift water drainage, while a space-saving waste and overflow fitting and included fixing kit support practical planning and installation.

Key Features

Subtle, straight-lined stainless steel design adds a touch of elegance to the sink area.
Spacious main sink is ideal for soaking baking trays and handling larger washing tasks.
Additional smaller sink supports easy food preparation alongside main kitchen tasks.
Elegant InFino strainer ensures swift water drainage from the bowls.
Waste and overflow fitting with space-saving pipe is included for efficient use of cabinet space.
Two 3 ½″ InFino basket strainers are supplied for effective bowl drainage.
Fixing kit included to support secure installation of the sink.

Technical Specifications

Product name	ANDANO 340/180-U
Item number	522977
Material	Stainless steel
Cut–out size	545 x 400 x R22
Hand of bowl	Please state hand of bowl
Overall width (front to back)	400 mm
Overall length (left to right)	585 mm
Main bowl width (front to back)	400 mm
Main bowl length	340 mm
Additional bowl length	180 mm
Radius of bowl corners	R12
Cabinet depth requirement	400 mm (approx. distance from front to back in side view)
Minimum cabinet length	600 mm (as indicated on cut–out drawing)
Height above worktop to bowl top	27.5 mm (as shown on cut–out side section)
Depth to waste (front view)	130 mm to lower pipe bend (approx., front view)
Rear clearance behind bowls	90 mm (front view dimension)
Distance between bowls	20 mm (as indicated between 340 and 180 mm bowls)

Additional Details

The design features a spacious main sink partnered with an additional smaller sink, supporting both washing and food preparation tasks. The straight-lined geometry contributes to a clean, contemporary appearance, while the stainless steel construction provides an elegant finish.

Planning information specifies a cut–out of 545 x 400 x R22, and users are asked to state the hand of the bowl when ordering or planning. The supplied waste and overflow fitting with space–saving pipe, together with two 3 ½″ InFino basket strainers and a fixing kit, form part of the scope of supply for installation.

Further details on installation, programmes, functions, safety or cleaning: Not stated in source.
