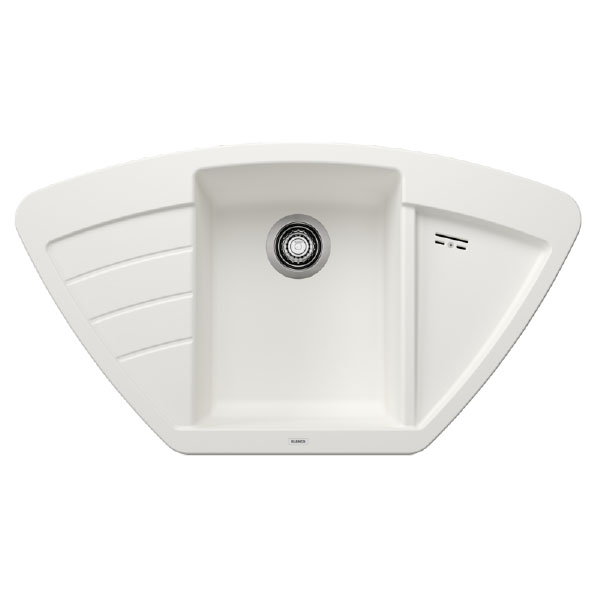

The BLANCO ZIA 9 E is a timeless, practical corner sink designed for streamlined multitasking in the kitchen. Its large bowl is ideal for soaking baking trays and cleaning pots and pans, while significant drainer grooves help channel water back into the sink. A generous tap ledge helps reduce splashes on the worktop, and the stainless steel basket strainer catches food debris to help prevent drain blockages.

Key Features

Timeless and practical sink design for everyday kitchen use.
Significant drainer grooves channel water into the sink, not onto the worktop.
Corner sink layout for streamlined multitasking in the kitchen.
Large sink bowl suitable for soaking baking trays and cleaning pots and pans.
Generous tap ledge helps reduce water splashes on the worktop.
Stainless steel basket strainer catches food debris to help prevent drain blockages.
SILGRANIT white finish as the featured colour.
Available colours: black, anthracite, volcano grey, white, soft white.
Cut-out template provided to support installation planning.
Waste fitting with space-saving pipe and 3½' basket strainer included in the scope of supply.

Technical Specifications

Product name	ZIA 9 E
Item number	514758
Material / finish	SILGRANIT white
Available colours	black, anthracite, volcano grey, white, soft white
Overall width (left to right)	930 mm (top view)
Overall depth (front to back)	510 mm (top view)
Bowl width (approx.)	340 mm (top view)
Drainer area width (approx.)	360 mm and 431 mm segments (top view)
Additional top ledge depth	220 mm (top view dimension)
Bowl depth	180 mm (front view)
Overall unit depth (under-sink)	330 mm (side view)
Recommended cabinet depth (front to back)	400 mm (side view)
Worktop cut-out length	800 mm (cut-out, top view)
Worktop thickness shown	11 mm (cut-out, top view)
Distance from worktop surface to bowl base	253 mm and 212 mm dimensions shown (front view)
Height below worktop at front edge	27 mm (front view)
Waste outlet size	3½' basket strainer

Installation and Additional Details

Cut-out information is supported by a template that is provided with the sink, helping with accurate worktop preparation.

The scope of supply includes a waste fitting with space-saving pipe, a 3½' basket strainer and the cut-out template.

Detailed views of the top, cut-out, front and side dimensions illustrate how the sink sits within the worktop and cabinet space.

Frequently Asked Questions

What is the item number for the BLANCO ZIA 9 E sink?

The item number for this sink is 514758.

Which colours are available for this sink?

The featured finish is SILGRANIT white. Available colours are black, anthracite, volcano grey, white and soft white.

Is a cut-out template provided for installation?

Yes. A cut-out template is provided with the sink to assist with worktop preparation.

What is included in the scope of supply?

The scope of supply includes a waste fitting with space-saving pipe, a 3½' basket strainer and a template provided with the sink.

How does the sink help keep the worktop dry?

Significant drainer grooves channel water into the sink, not onto the worktop, and the generous tap ledge helps reduce water splashes on the worktop.

How does the basket strainer help with maintenance?

The stainless steel basket strainer catches food debris, which helps prevent drain blockages.

ZIA9ESILGWHITE

Blanco Zia 9 E Silgranit Inset Sink
