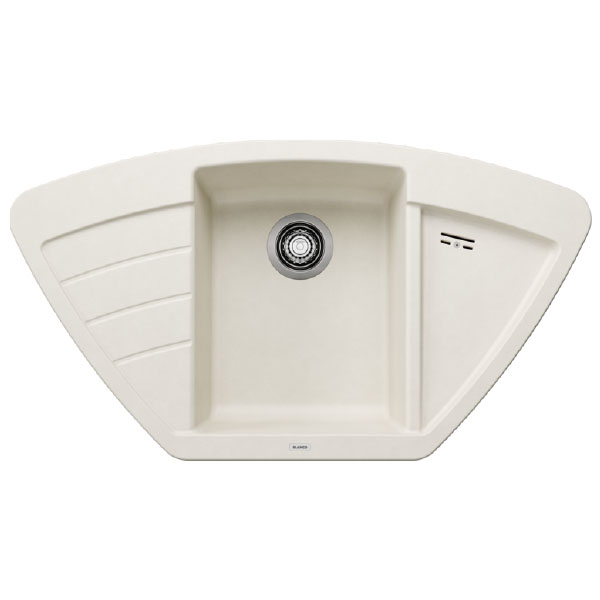

The BLANCO ZIA 9 E is a timeless and practical corner sink in SILGRANIT soft white, designed for streamlined multitasking in the kitchen. Its large sink is ideal for soaking baking trays and cleaning pots and pans, while significant drainer grooves channel water back into the bowl. A generous tap ledge helps reduce splashes on the worktop, and the stainless steel basket strainer catches food debris to help prevent drain blockages.

Key Features

Timeless and practical sink design for everyday kitchen use.
Significant drainer grooves channel water into the sink, not onto the worktop.
Corner sink layout supports streamlined multitasking in compact or angled spaces.
Large sink bowl suitable for soaking baking trays and cleaning pots and pans.
Generous tap ledge helps reduce water splashes on the worktop.
Stainless steel basket strainer catches food debris to help prevent drain blockages.
Scope of supply includes waste fitting with space-saving pipe.
Template provided to assist with cut-out for installation.
Available in SILGRANIT soft white and other colours: black, anthracite, volcano grey and white.

Technical Specifications

Product name	ZIA 9 E
Item number	527212
Material	SILGRANIT (soft white)
Available colours	black, anthracite, volcano grey, white, soft white
Overall width	930 mm
Overall depth (front to back)	510 mm
Main bowl width	340 mm
Main bowl depth (front to back)	420 mm
Drainer side depth (front to back)	360 mm and 431 mm (angled sides)
Drainer width (to bowl cut-out)	220 mm
Taphole to front edge	340 mm (centre line position indicated in top view)
Worktop cut-out length	800 mm (top view cut-out)
Worktop overhang thickness	11 mm (shown on cut-out diagram)
Bowl depth (vertical)	180 mm (front view)
Distance from underside of worktop to bottom of bowl	180 mm (front view)
Cabinet depth (side view)	400 mm (from wall to front inside cabinet)
Maximum installation height (top of worktop to bottom of waste)	330 mm (side view)
Waste outlet size	3 ½'' basket strainer
Included waste fitting	Waste fitting with space-saving pipe
Cut-out template	Template provided with sink

Additional Details and Installation

The sink is supplied with a cut-out template to assist in preparing the worktop opening. Planning information specifies that the cut-out is made using the provided template.

A waste fitting with space-saving pipe is included, together with a 3 ½'' stainless steel basket strainer that helps to catch food debris and helps prevent drain blockages.

The design incorporates a generous tap ledge to help limit water splashes on the worktop, and significant drainer grooves to guide water directly back into the sink.

Frequently Asked Questions

What is included with the BLANCO ZIA 9 E sink?

The scope of supply includes a waste fitting with space-saving pipe, a 3 ½'' basket strainer and a template provided with the sink.

Which colours are available?

The sink is shown in SILGRANIT soft white. Available colours listed are black, anthracite, volcano grey, white and soft white.

Is this sink suitable for a corner installation?

Yes. It is described as a great corner sink for streamlined multitasking, with a layout designed for corner positioning.

How does the sink help manage water on the worktop?

Significant drainer grooves channel water into the sink rather than onto the worktop, and a generous tap ledge helps reduce water splashes on the surrounding surface.

What type of items can the bowl accommodate?

The large sink is described as suitable for soaking baking trays and cleaning pots and pans.
