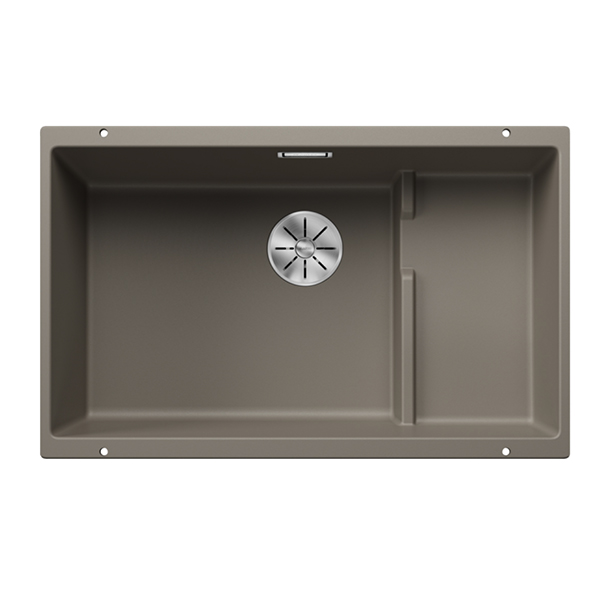

The SUBLINE 700–U Level is a versatile kitchen sink designed to fit harmoniously into the worktop, ideal for minimalist kitchens. Its straight–lined design offers timeless elegance, with a large main bowl and an additional raised area for stacking washing up or draining. Finished in SILGRANIT tartufo and supplied with a stylish InFino strainer and space–saving waste fitting, it combines functional layout with clean, modern styling.

Key Features

Versatile SUBLINE kitchen sink range fits harmoniously into the worktop, suitable for minimalist kitchens.
Straight–lined design for a timelessly elegant appearance.
Large main bowl providing generous space for washing up.
Additional raised area designed for stacking washing up or draining.
Stylish InFino strainer for swift water drainage.
SILGRANIT tartufo finish as the specified colour for this model.
Available colour options include black, anthracite, rock grey, volcano grey, white, soft white, tartufo and coffee.
Space–saving waste fitting supplied for efficient use of under–sink space.

Technical Specifications

Item number	523545
Product range	SUBLINE 700–U Level
Material / finish	SILGRANIT tartufo
Available colours	black, anthracite, rock grey, volcano grey, white, soft white, tartufo, coffee
Cut–out size	700 x 400 x R10
Overall sink width (top view)	730 mm
Main bowl width (top view)	490 mm
Raised area width (top view)	190 mm
Front–to–back dimension (top view)	460 mm total (400 mm bowl, 30 mm front, 30 mm rear)
Worktop length (cut–out drawing)	800 mm with 50 mm end distance
Height above cabinet base (front view)	140 mm (sink underside to cabinet base)
Distance from worktop to cabinet base (front view)	200 mm
Sink bowl depth (side view)	322 mm from worktop underside to lowest point shown
Under–sink clearance (side view)	400 mm depth available for pipework
Waste connection	3 ½'' InFino basket strainer with space–saving pipe

Additional Details

The SUBLINE 700–U Level is designed for an undermount installation, sitting harmoniously within the worktop. The planning information specifies a cut–out of 700 x 400 x R10 to accommodate the sink correctly.

The scope of supply includes a waste fitting with space–saving pipe and a 3 ½'' InFino basket strainer, providing an integrated solution for water drainage and under–sink pipework.

Frequently Asked Questions

What is the material and colour of the SUBLINE 700–U Level sink?

The sink is specified in SILGRANIT tartufo. Other available colours in the range include black, anthracite, rock grey, volcano grey, white, soft white, tartufo and coffee.

What cut–out size is required in the worktop?

The planning information states a cut–out of 700 x 400 x R10 for fitting the sink into the worktop.

What is included in the scope of supply?

The sink is supplied with a waste fitting featuring a space–saving pipe and a 3 ½'' InFino basket strainer.

What are the main functional areas of the sink?

The sink features a large main bowl and an additional raised area that can be used for stacking washing up or draining.

How would you describe the design style of this sink?

It has a straight–lined, timelessly elegant design that fits harmoniously into the worktop, making it well suited to minimalist kitchens.
