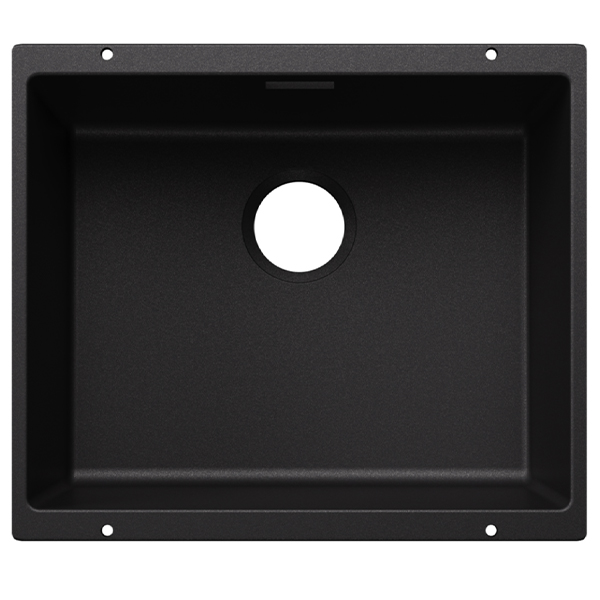

The SUBLINE 500-U for Coloured Components is a straight-lined, undermount kitchen sink with a generous bowl designed for soaking and cleaning baking trays, pots and pans. It is ideal for minimalist kitchens where the sink should fit harmoniously into the worktop. The design allows perfect colour harmony when paired with a Coloured Components InFino set and matching tap finish, ordered separately.

Key Features

Create perfect colour harmony by choosing a Coloured Components InFino set (ordered separately) to match the tap finish.
Versatile SUBLINE range fits harmoniously into the worktop, ideal for minimalist kitchen designs.
Straight-lined design for a timelessly elegant appearance.
Generous bowl suitable for soaking and cleaning baking trays, pots and pans.
Wide colour choice including black, anthracite, rock grey, volcano grey, white, soft white, tartufo and coffee.
SILGRANIT anthracite option available within the colour range.
Fixing kit included in the scope of supply.
InFino basket strainer and waste components must be ordered separately.

Technical Specifications

Product name	SUBLINE 500-U for Coloured Components
Item number	527797
Material / finish	SILGRANIT anthracite
Available colours	black, anthracite, rock grey, volcano grey, white, soft white, tartufo, coffee
Overall width (left – right)	530 mm
Overall front – back	460 mm
Bowl width	500 mm
Bowl front – back	400 mm
Front / back rim width	30 mm
Side rim width	15 mm
Undermount cut–out width	500 mm
Undermount cut–out front – back	400 mm
Cut–out corner radius	R10
Front edge to cut–out	50 mm
Back edge to cut–out	50 mm
Depth of bowl (top to bottom)	190 mm
Total installation height	312 mm
Under–cabinet internal depth	400 mm

Additional Details and Planning

The SUBLINE 500-U is part of a kitchen sink range designed to fit harmoniously into the worktop, making it particularly suitable for minimalist layouts. The generous, straight-lined bowl provides ample space for soaking and cleaning larger items such as baking trays, pots and pans.

For installation planning, the undermount cut–out is 500 mm in width and 400 mm front to back, with a 50 mm distance from both the front and back edges and an R10 corner radius.

The InFino basket strainer and waste components are not included and must be ordered separately. A fixing kit is supplied.

Frequently Asked Questions

What is included with the SUBLINE 500-U for Coloured Components?

The scope of supply includes a fixing kit. The InFino basket strainer and waste components are not included and must be ordered separately.

Which colours are available?

Available colours are black, anthracite, rock grey, volcano grey, white, soft white, tartufo and coffee. A SILGRANIT anthracite option is shown.

How does this sink suit minimalist kitchens?

The SUBLINE kitchen sink range is designed to fit harmoniously into the worktop, and its straight-lined, timelessly elegant design makes it well suited to minimalist kitchens.

Can I match the sink with my tap finish?

Yes. You can create perfect colour harmony by choosing a Coloured Components InFino set, ordered separately, to match the tap finish.

Is the bowl large enough for baking trays?

The sink has a generous bowl specifically described as suitable for soaking and cleaning baking trays, pots and pans.

SUBLINE500USILGAN

Blanco Subline 500U Silgranit Undermount Sink
